Infineon recommends a 2-layer or 4-layer PCB with a thermal via array under the device to improve heat dissipation. A minimum of 10 thermal vias with a diameter of 0.3 mm is recommended.
To ensure reliable operation in high-temperature environments, it is recommended to derate the device's power dissipation according to the temperature derating curve provided in the datasheet. Additionally, ensure good thermal design and heat sinking to keep the junction temperature below the maximum rating.
Infineon recommends a soldering profile with a peak temperature of 260°C for a maximum of 10 seconds. The device should be soldered using a reflow soldering process with a nitrogen atmosphere to prevent oxidation.
Handle the device with ESD-protective materials and tools. Store the device in its original packaging or in a conductive bag with a dissipative material. Ground yourself before handling the device, and avoid touching the pins or leads.
The 6ED2230S12TXUMA1 has an MSL rating of 3, which means it can withstand a maximum exposure of 168 hours at 30°C and 60% relative humidity before soldering.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
6ED2230S12TXUMA1 Overview

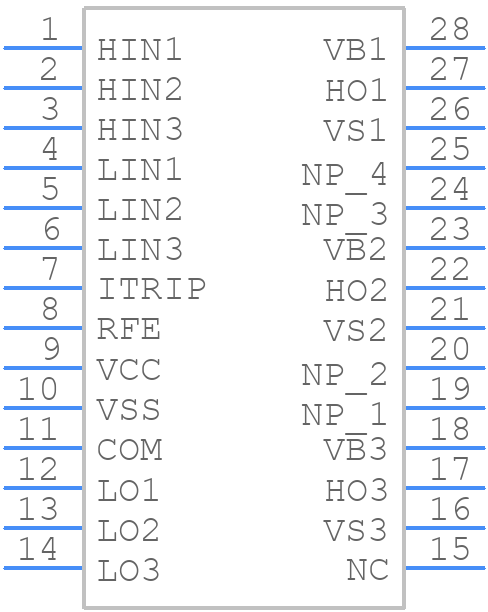

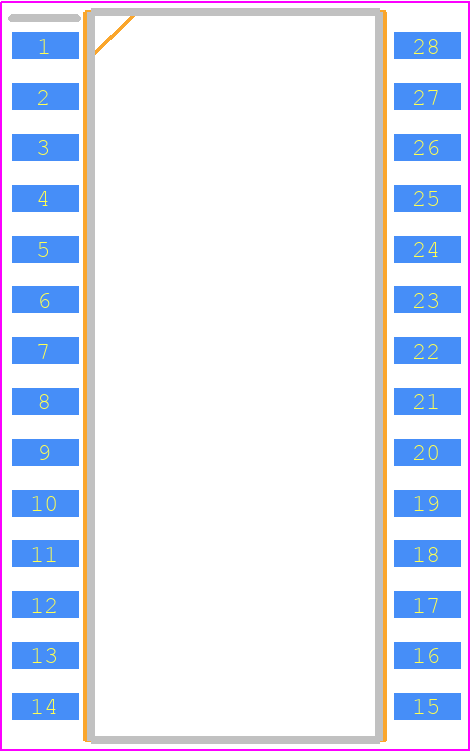

Use the download button to access the 6ED2230S12TXUMA1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 6ED22,
or try a keyword search, such as MOSFET Drivers
