The recommended PCB footprint for the 6EDL04N06PT is a TO-220 package with a minimum pad size of 5.5mm x 4.5mm and a thermal pad size of 3.5mm x 3.5mm.
To ensure proper cooling, a heat sink with a thermal resistance of ≤ 10°C/W is recommended. Additionally, a thermal interface material (TIM) with a thermal conductivity of ≥ 5 W/mK should be used to fill the gap between the device and the heat sink.
The maximum allowed voltage transient for the 6EDL04N06PT is ± 50 V for a duration of ≤ 100 ns. Exceeding this limit may damage the device.
Yes, the 6EDL04N06PT is qualified according to AEC-Q101, making it suitable for high-reliability applications such as automotive systems.
To protect the 6EDL04N06PT from ESD, handle the device with an ESD wrist strap or mat, and ensure that the PCB is designed with ESD protection in mind, such as using ESD protection diodes or resistors.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
6EDL04N06PT Overview

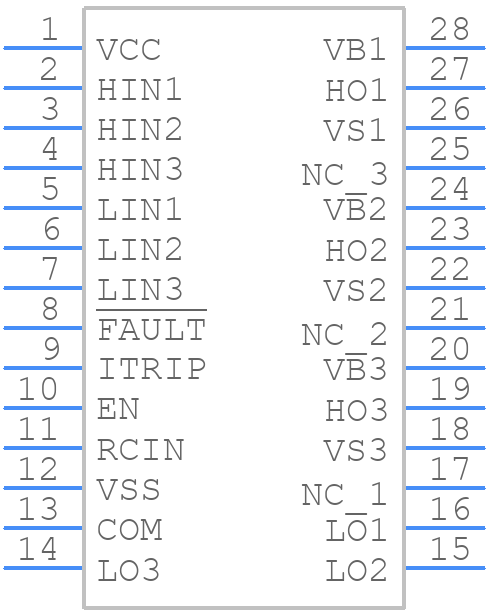

Use the download button to access the 6EDL04N06PT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 6EDL0,
or try a keyword search, such as MOSFET Drivers
