6N135-X007 - Vishay

Description: High Speed Optocouplers 1Mbd High-Speed Trans Out CTR>16%

Download 6N135-X007 Model

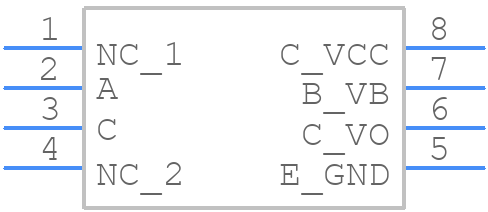

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
6N135-X007 - Vishay PCB footprint - Small Outline Packages - Small Outline Packages - SMD-8 (Option 7)-ren1
click to zoom
3D Models
6N135-X007 - Vishay  - 3D model - Small Outline Packages - SMD-8 (Option 7)-ren1
click to zoom

6N135-X007 Details

  • Manufacturer Part Number:

    6N135-X007

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    DIP-8

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.40.80.00

  • Manufacturer:

    Vishay Intertechnologies

  • YTEOL:

    0

  • Additional Feature:

    OPEN COLLECTOR, UL RECOGNIZED

  • Configuration:

    SINGLE

  • Current Transfer Ratio-Min:

    7%

  • Data Rate-Nom:

    1 MBps

  • Forward Current-Max:

    0.025 A

  • Forward Voltage-Max:

    1.9 V

  • Isolation Voltage-Max:

    2500 V

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Elements:

    1

  • Number of Functions:

    1

  • On-State Current-Max:

    0.008 A

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -55 °C

  • Optoelectronic Device Type:

    LOGIC IC OUTPUT OPTOCOUPLER

  • Power Dissipation-Max:

    0.1 W

  • Surface Mount:

    YES
