6N135-X017T - Vishay

Description: High Speed Optocouplers 1Mbd High-Speed Trans Out CTR>16%

Download 6N135-X017T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

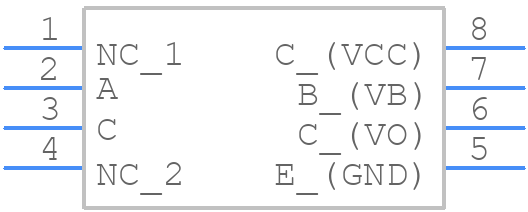

6N135-X017T - Vishay - PCB symbol
click to zoom
PCB Footprints
6N135-X017T - Vishay PCB footprint - Small Outline Packages - Small Outline Packages - 6N135-X017T
click to zoom
3D Models
6N135-X017T - Vishay - 3D model - Small Outline Packages - 6N135-X017T
click to zoom

6N135-X017T Details

  • Manufacturer Part Number:

    6N135-X017T

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    ROHS COMPLIANT, SMD, 8 PIN

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.40.80.00

  • Manufacturer:

    Vishay Intertechnologies

  • YTEOL:

    0

  • Additional Feature:

    TTL COMPATIBLE, UL RECOGNIZED, VDE APPROVED

  • Configuration:

    SINGLE

  • Current Transfer Ratio-Min:

    5%

  • Data Rate-Nom:

    1 MBps

  • Forward Current-Max:

    0.025 A

  • Forward Voltage-Max:

    1.9 V

  • Isolation Voltage-Max:

    5300 V

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Elements:

    1

  • Number of Functions:

    1

  • On-State Current-Max:

    0.008 A

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -55 °C

  • Power Dissipation-Max:

    0.1 W

  • Surface Mount:

    YES

6N135-X017T Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the 6N135-X017T is -40°C to 100°C, although it can withstand storage temperatures from -40°C to 150°C.
  • To ensure reliable operation in high-temperature environments, it's essential to follow proper PCB design and layout guidelines, provide adequate heat sinking, and consider derating the device's current and voltage ratings according to the datasheet.
  • The maximum allowable voltage for the 6N135-X017T's input diode is 5.5V, although it's recommended to operate within the specified voltage range of 3.5V to 5.5V for reliable operation.
  • While the 6N135-X017T is suitable for high-frequency applications, its bandwidth is limited to around 10 kHz. For higher-frequency applications, consider using a faster optocoupler or a different type of isolation device.
  • To handle ESD protection for the 6N135-X017T, follow proper handling and storage procedures, use ESD-protective packaging and materials, and consider adding external ESD protection devices or circuits to the PCB design.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

6N135-X017T Overview

Use the download button to access the 6N135-X017T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 6N135, or try a keyword search, such as Optocoupler
