The recommended operating temperature range for the 6N136-X007 is -40°C to 100°C. However, it's essential to note that the device's performance may degrade at extreme temperatures, and the user should consult the datasheet for specific temperature-related characteristics.
To ensure proper soldering, follow the recommended soldering profile and temperature guidelines provided in the datasheet. Additionally, use a solder with a melting point below 260°C to prevent damage to the device. It's also crucial to handle the device by the body, not the leads, to prevent mechanical stress.
The maximum allowable voltage for the 6N136-X007 is 5.5V for the input side and 30V for the output side. Exceeding these voltage limits may damage the device or affect its performance.
The 6N136-X007 is designed for low-to-moderate frequency applications. While it can operate at higher frequencies, its performance may degrade, and the user should consult the datasheet for specific frequency-related characteristics. For high-frequency applications, consider using a more suitable optocoupler or consulting with a Vishay Intertechnologies representative.
To ensure proper decoupling, use a 0.1μF to 1μF ceramic capacitor between the VCC pin and GND pin, and a 10nF to 100nF ceramic capacitor between the input pins and GND pin. This helps to filter out noise and prevent power supply disturbances from affecting the device's performance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
6N136-X007 Overview

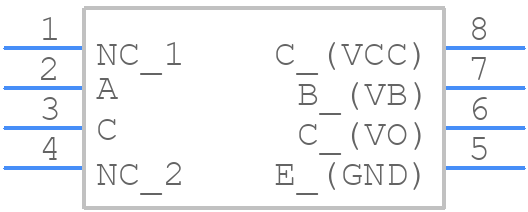

Use the download button to access the 6N136-X007 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 6N136,
or try a keyword search, such as Optocoupler
