6N136-X007T - Vishay

Description: High Speed Optocouplers 1Mbd High-Speed Trans Out CTR>35%

Download 6N136-X007T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

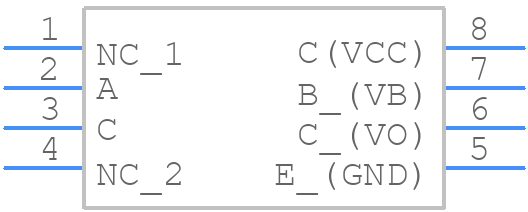

6N136-X007T - Vishay - PCB symbol
click to zoom
PCB Footprints
6N136-X007T - Vishay PCB footprint - Small Outline Packages - Small Outline Packages - 6N136-X007T
click to zoom
3D Models
6N136-X007T - Vishay - 3D model - Small Outline Packages - 6N136-X007T
click to zoom

6N136-X007T Details

  • Manufacturer Part Number:

    6N136-X007T

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.40.80.00

  • Manufacturer:

    Vishay Intertechnologies

  • YTEOL:

    0

  • Additional Feature:

    OPEN COLLECTOR, UL RECOGNIZED

  • Configuration:

    SINGLE

  • Current Transfer Ratio-Min:

    15%

  • Data Rate-Nom:

    1 MBps

  • Forward Current-Max:

    0.025 A

  • Forward Voltage-Max:

    1.9 V

  • Isolation Voltage-Max:

    2500 V

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Elements:

    1

  • Number of Functions:

    1

  • On-State Current-Max:

    0.008 A

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -55 °C

  • Optoelectronic Device Type:

    LOGIC IC OUTPUT OPTOCOUPLER

  • Power Dissipation-Max:

    0.1 W

  • Surface Mount:

    YES
