6N136 - Vishay

Description: Vishay 6N136 DC Input, Transistor Output Optocoupler, Through-hole DIP 8

Download 6N136 Model
Schematic

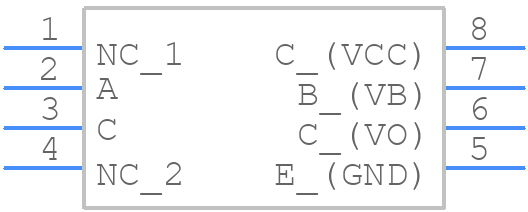

symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
6N136 - Vishay PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - DIP8*
click to zoom
3D Models
6N136 - Vishay  - 3D model - Dual-In-Line Packages - DIP8*
click to zoom

6N136 Details

  • Manufacturer Part Number:

    6N136

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.40.80.00

  • Factory Lead Time:

    14 Weeks

  • Manufacturer:

    Vishay Intertechnologies

  • YTEOL:

    7.15

  • Additional Feature:

    TTL COMPATIBLE

  • Configuration:

    SINGLE

  • Current Transfer Ratio-Min:

    19%

  • Data Rate-Nom:

    1 MBps

  • Forward Current-Max:

    0.025 A

  • Forward Voltage-Max:

    1.7 V

  • Isolation Voltage-Max:

    5300 V

  • JESD-609 Code:

    e3

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Number of Elements:

    1

  • Number of Functions:

    1

  • On-State Current-Max:

    0.008 A

  • Operating Temperature-Max:

    70 °C

  • Optoelectronic Device Type:

    LOGIC IC OUTPUT OPTOCOUPLER

  • Power Dissipation-Max:

    0.1 W

  • Response Time-Max:

    8e-7 s

  • Response Time-Nom:

    3e-8 ns

  • Shape:

    RECTANGULAR

  • Surface Mount:

    NO

  • Terminal Finish:

    Matte Tin (Sn)

6N136 Frequently Asked Questions (FAQs)

  • The 6N136 can operate safely between -40°C to 100°C, but the optimal operating temperature range is between 0°C to 70°C for reliable performance.
  • To ensure proper biasing, the input diode should be forward-biased with a current between 1mA to 10mA, and the output transistor should be biased with a collector-emitter voltage between 4V to 10V.
  • To minimize electromagnetic interference (EMI) and ensure reliable operation, it is recommended to keep the input and output pins separate, with a minimum spacing of 1mm between them, and to use a ground plane to shield the device.
  • While the 6N136 is primarily designed for low-frequency applications, it can be used in high-frequency applications up to 1MHz with proper filtering and impedance matching to minimize signal distortion and ringing.
  • To protect the 6N136 from EOS and ESD, use a voltage limiter or transient voltage suppressor (TVS) on the input pins, and ensure that the device is handled and stored in an ESD-safe environment.
