6N136S-TA1 footprint, schematic symbol and 3D model by Lite-On

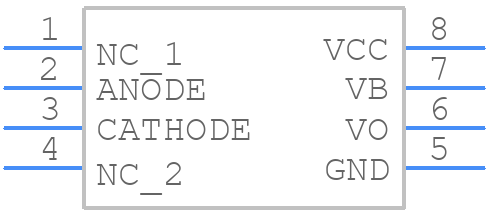

Symbol

PCB Footprints

3D Models

6N136S-TA1 Details

The recommended operating temperature range for the 6N136S-TA1 is -40°C to 100°C.
To ensure reliability in high-temperature applications, it is recommended to derate the device's current and voltage ratings according to the datasheet, and to provide adequate heat sinking and thermal management.
The maximum allowable voltage for the 6N136S-TA1 is 80V, but it is recommended to operate the device at a voltage below 60V to ensure reliable operation.
To handle ESD protection for the 6N136S-TA1, it is recommended to follow proper ESD handling procedures, such as using an ESD wrist strap or mat, and to ensure that the device is stored in an ESD-protected environment.
The typical propagation delay time for the 6N136S-TA1 is around 2-3 μs, but this can vary depending on the specific application and operating conditions.

Expert Contribution

System Verified

Community Approved

Use the download button to access the 6N136S-TA1 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like 6N136, or try a keyword search, such as Optocoupler
