6N136S - Lite-On

Description: DC-IN 1-CH Transistor With Base DC-OUT 8-Pin DIP SMD

Download 6N136S Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

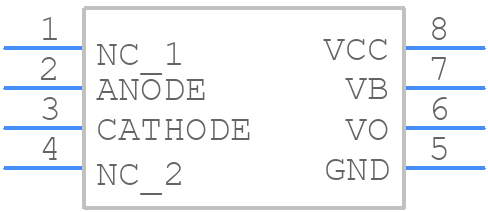

6N136S - Lite-On - PCB symbol
click to zoom
PCB Footprints
6N136S - Lite-On PCB footprint - Small Outline Packages - Small Outline Packages - 6N136S-
click to zoom
3D Models
6N136S - Lite-On - 3D model - Small Outline Packages - 6N136S-
click to zoom

6N136S Details

  • Manufacturer Part Number:

    6N136S

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • HTS Code:

    8541.40.80.00

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    Lite-On Semiconductor Corporation

  • YTEOL:

    0

  • Configuration:

    SINGLE

  • Current Transfer Ratio-Min:

    15%

  • Forward Current-Max:

    0.025 A

  • Forward Voltage-Max:

    1.95 V

  • Isolation Voltage-Max:

    2500 V

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Elements:

    1

  • Number of Functions:

    1

  • On-State Current-Max:

    0.008 A

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -55 °C

  • Optoelectronic Device Type:

    LOGIC IC OUTPUT OPTOCOUPLER

  • Power Dissipation-Max:

    0.1 W

  • Surface Mount:

    YES

6N136S Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the 6N136S is -40°C to 100°C.
  • To ensure reliability in high-temperature applications, it is recommended to derate the device's current and voltage ratings according to the datasheet's thermal derating curve.
  • The maximum allowable voltage for the 6N136S is 80V, but it is recommended to operate the device at a voltage below 60V to ensure reliable operation.
  • The correct resistor value for the 6N136S depends on the specific application and the desired current transfer ratio. A general guideline is to choose a resistor value that limits the LED current to 10-20mA.
  • The 6N136S is not suitable for high-frequency applications above 1MHz due to its limited bandwidth. For high-frequency applications, consider using a high-speed optocoupler like the 6N137 or 6N138.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

6N136S Overview

Use the download button to access the 6N136S schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 6N136, or try a keyword search, such as Optocoupler

Suggested Parts

If you searched for 6N136S, you might also be interested in these parts:
Part Number
