6N136SDM - onsemi

Description: Dual-Channel: HCPL2530M, HCPL2531M; High Speed –1 MBit/s; No Base Connection for Improved Noise Immunity (HCPL4503M); CTR Guaranteed 0°C to 70°C; Superior CMR of 15,000 V/µs Minimum (HCPL4503M); Safety and Regulatory Approvals - UL1577, 5,000 VACRMS for 1 Minute - DIN EN/IEC60747-5-5

Download 6N136SDM Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

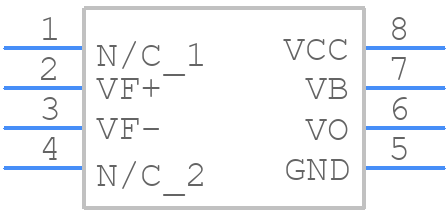

6N136SDM - onsemi - PCB symbol
click to zoom
PCB Footprints
6N136SDM - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - 6N136SDM-1
click to zoom
3D Models
6N136SDM - onsemi - 3D model - Small Outline Packages - 6N136SDM-1
click to zoom

6N136SDM Details

  • Manufacturer Part Number:

    6N136SDM

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    PDIP-8 GW

  • Manufacturer Package Code:

    709AC

  • Country Of Origin:

    Thailand

  • HTS Code:

    8541.40.80.00

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    7

  • Additional Feature:

    IEC-60747-5-5, TTL AND CMOS COMPATIBLE, UL APPROVED

  • Configuration:

    SINGLE

  • Current Transfer Ratio-Min:

    15%

  • Data Rate-Nom:

    1 MBps

  • Forward Current-Max:

    0.025 A

  • Forward Voltage-Max:

    1.8 V

  • Isolation Voltage-Max:

    5000 V

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Elements:

    1

  • Number of Functions:

    1

  • On-State Current-Max:

    0.008 A

  • Operating Temperature-Max:

    70 °C

  • Optoelectronic Device Type:

    LOGIC IC OUTPUT OPTOCOUPLER

  • Packing Method:

    TR

  • Power Dissipation-Max:

    0.1 W

  • Supply Voltage-Min:

    4.5 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

6N136SDM Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the 6N136SDM is -40°C to 100°C.
  • To ensure reliable operation in high-temperature environments, it is recommended to derate the device's current and voltage ratings according to the datasheet's thermal derating curves.
  • The maximum allowable voltage across the input pins of the 6N136SDM is 5.5V, exceeding which may cause damage to the device.
  • While the 6N136SDM is suitable for high-frequency applications, its bandwidth is limited to around 10 kHz. For higher frequencies, a different optocoupler may be more suitable.
  • To minimize EMI, ensure proper PCB layout, use shielding, and follow good design practices for high-frequency circuits. Additionally, consider using a shielded optocoupler or a different package type if EMI is a significant concern.
