6N137(F) - Toshiba

Description: Optocoupler Logic-Out Open Collector DC-IN 1-CH 8-Pin PDIP

Download 6N137(F) Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

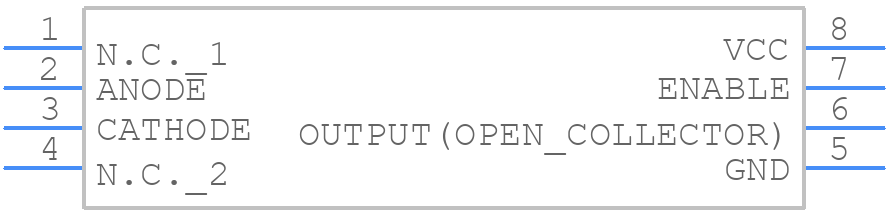

6N137(F) - Toshiba - PCB symbol
