6N137-000E - Avago Technologies

Description: High Speed Optocouplers 10 Mb/s 3750Vrms

Download 6N137-000E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

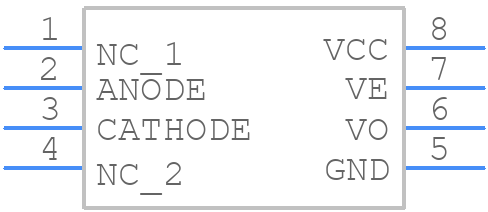

6N137-000E - Avago Technologies - PCB symbol
click to zoom
PCB Footprints

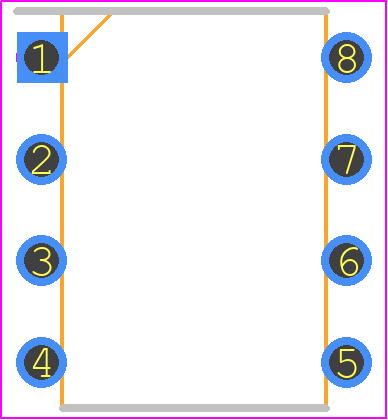

6N137-000E - Avago Technologies PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - DIP-8_1
click to zoom
3D Models
6N137-000E - Avago Technologies - 3D model - Dual-In-Line Packages - DIP-8_1
click to zoom

6N137-000E Details

  • Manufacturer Part Number:

    6N137-000E

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    0.300 INCH, ROHS COMPLIANT, DIP-8

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Thailand

  • HTS Code:

    8541.40.80.00

  • Manufacturer:

    Avago Technologies

  • YTEOL:

    7

  • Additional Feature:

    TTL COMPATIBLE, UL RECOGNIZED

  • Configuration:

    SINGLE

  • Data Rate-Nom:

    10 MBps

  • Forward Current-Max:

    0.02 A

  • Isolation Voltage-Max:

    3750 V

  • JESD-609 Code:

    e3

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Number of Elements:

    1

  • Number of Functions:

    1

  • On-State Current-Max:

    0.05 A

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    LOGIC IC OUTPUT OPTOCOUPLER

  • Power Dissipation-Max:

    0.085 W

  • Response Time-Nom:

    5e-8 ns

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    NO

  • Terminal Finish:

    Tin (Sn)

6N137-000E Frequently Asked Questions (FAQs)

  • A good PCB layout for the 6N137-000E involves keeping the input and output circuits separate, using a ground plane to reduce noise, and minimizing the length of the traces between the optocoupler and the surrounding components.
  • To ensure reliable operation in high-temperature environments, ensure that the 6N137-000E is operated within its recommended temperature range (-40°C to 100°C), and consider using a heat sink or thermal pad to dissipate heat.
  • The maximum allowable voltage for the 6N137-000E is 5.5V, exceeding which may damage the device. It's essential to ensure that the voltage supply to the optocoupler does not exceed this rating.
  • To choose the correct current-limiting resistor for the 6N137-000E, calculate the required resistor value based on the desired LED current, taking into account the forward voltage drop of the LED and the supply voltage.
  • To prevent damage to the 6N137-000E, store it in a dry, cool place, away from direct sunlight and moisture. Handle the device by the body, avoiding touching the pins or leads to prevent electrostatic discharge.
