6N137 - Lite-On

Description: High Speed Optocouplers High Speed 10MBd LogicGate Output

Download 6N137 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

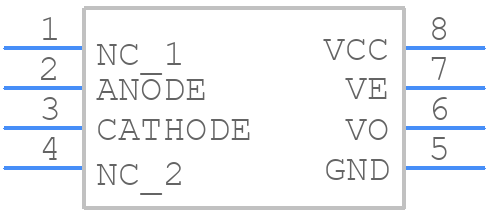

6N137 - Lite-On - PCB symbol
click to zoom
PCB Footprints
6N137 - Lite-On PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - LTV-827
click to zoom
3D Models
6N137 - Lite-On - 3D model - Dual-In-Line Packages - LTV-827
click to zoom

6N137 Details

  • Manufacturer Part Number:

    6N137

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DIP-8

  • Reach Compliance Code:

    Compliant

  • HTS Code:

    8541.40.80.00

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    Lite-On Semiconductor Corporation

  • YTEOL:

    7

  • Additional Feature:

    CMOS COMPATIBLE, UL APPROVED, CAN ALSO OPERATE ON 5V

  • Configuration:

    SINGLE

  • Data Rate-Nom:

    15 MBps

  • Forward Current-Max:

    0.02 A

  • Isolation Voltage-Max:

    5000 V

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Number of Elements:

    1

  • Number of Functions:

    1

  • On-State Current-Max:

    0.05 A

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    LOGIC IC OUTPUT OPTOCOUPLER

  • Response Time-Nom:

    2.1e-8 ns

  • Supply Voltage-Min:

    2.7 V

  • Surface Mount:

    NO

6N137 Frequently Asked Questions (FAQs)

  • The maximum allowable voltage that can be applied to the input pins is 5V, exceeding which may cause damage to the device.
  • To ensure reliable operation in high-temperature environments, it is recommended to derate the device's current and voltage ratings according to the datasheet's thermal derating curve.
  • The recommended layout and spacing for the 6N137 on a PCB is to keep the input and output circuits separate, with a minimum spacing of 10mm between them, and to use a ground plane to minimize noise and EMI.
  • While the 6N137 can be used for high-frequency applications, its bandwidth is limited to around 10kHz. For higher frequencies, a faster optocoupler like the 6N138 or 6N139 may be more suitable.
  • To protect the 6N137 from ESD and surge damage, it is recommended to use ESD protection devices such as TVS diodes or ESD suppressors, and to follow proper PCB layout and grounding practices.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

6N137 Overview

Use the download button to access the 6N137 schematic symbol, PCB footprint, and 3D model.
