6N137S footprint, schematic symbol and 3D model by Lite-On

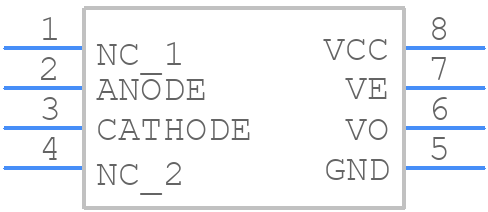

Symbol

PCB Footprints

3D Models

6N137S Details

The maximum allowable voltage that can be applied to the input pins is 5V, exceeding which may cause damage to the device.
To ensure reliable operation in high-temperature environments, it is recommended to derate the device's current and voltage ratings according to the datasheet's thermal derating curve.
The recommended layout and spacing for the 6N137S on a PCB is to keep the device at least 1.5 mm away from other components and to use a ground plane to minimize electromagnetic interference.
While the 6N137S can be used for high-frequency applications, its bandwidth is limited to around 10 MHz. For higher frequencies, a faster optocoupler may be required.
To troubleshoot issues with the 6N137S, check the input voltage and current, ensure proper PCB layout and spacing, and verify that the device is operated within its recommended specifications.

Community Provided

System Verified

Community Approved

Use the download button to access the 6N137S schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like 6N137, or try a keyword search, such as Optocoupler

If you searched for 6N137S, you might also be interested in these parts:

Showing 0 results

Image	Part Number	Model
	6N137S-TA1 Lite-On Semiconductor Corporation Logic IC Output Optocoupler, 1-Channel, 1-Element, 5000V Isolation, 15MBps
	6N137S-TA Lite-On Semiconductor Corporation Logic IC Output Optocoupler, 1-Channel, 1-Element, 5000V Isolation, 15MBps
	6N137S onsemi Logic IC Output Optocoupler, 1-Channel, 1-Element, 2500V Isolation, 10MBps
For a full list of alternate parts for 6N137S, check out Findchips.com
