6N137S - onsemi

Description: Fairchild 6N137S DC Input Logic Gate Output Optocoupler, Surface Mount, 8-Pin SMD

Download 6N137S Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

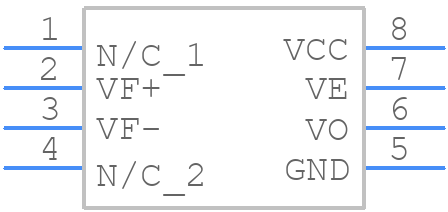

Symbol
6N137S - onsemi - PCB symbol
click to zoom
PCB Footprints
6N137S - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - PDIP8 GW CASE 709AC ISSUE O_2021
click to zoom
3D Models
6N137S - onsemi - 3D model - Small Outline Packages - PDIP8 GW CASE 709AC ISSUE O_2021
click to zoom

6N137S Details

  • Manufacturer Part Number:

    6N137S

  • Brand Name:

    ON Semiconductor

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Manufacturer Package Code:

    N08H

  • Reach Compliance Code:

    Compliant

  • HTS Code:

    8541.40.80.00

  • Manufacturer:

    onsemi

  • YTEOL:

    0

  • Additional Feature:

    UL RECOGNIZED

  • Configuration:

    SINGLE

  • Data Rate-Nom:

    10 MBps

  • Forward Current-Max:

    0.05 A

  • Isolation Voltage-Max:

    2500 V

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Elements:

    1

  • Number of Functions:

    1

  • On-State Current-Max:

    0.05 A

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    LOGIC IC OUTPUT OPTOCOUPLER

  • Response Time-Max:

    1e-7 s

  • Response Time-Nom:

    4.5e-8 ns

  • Supply Voltage-Min:

    4.5 V

  • Surface Mount:

    YES

6N137S Frequently Asked Questions (FAQs)

  • The maximum allowable voltage across the input pins is ±5V, exceeding which can cause damage to the device.
  • To ensure reliable operation in high-temperature environments, it's essential to follow proper thermal management practices, such as providing adequate heat sinking and keeping the junction temperature below the maximum rated value of 100°C.
  • The recommended input current for the 6N137S is typically in the range of 1-10mA, depending on the specific application requirements. Exceeding the maximum input current can reduce the device's lifespan.
  • While the 6N137S can operate at frequencies up to 25 kHz, it's not recommended for high-frequency applications (>100 kHz) due to its limited bandwidth and potential for signal distortion.
  • To prevent electrostatic discharge (ESD) damage, it's essential to follow proper handling and storage procedures, such as using ESD-safe materials, grounding yourself before handling the device, and storing the device in a protective package.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

6N137S Overview

Use the download button to access the 6N137S schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 6N137, or try a keyword search, such as Optocoupler
