6N137SDM - onsemi

Description: Logic gate output; U.L. recognized (File # E90700, Vol. 2); Fan-out of 8 over -40°C to +85°C; Superior CMR – 10 kV/µs; Wired OR-open collector; Strobable output; Very high speed – 10 MBit/s

Download 6N137SDM Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

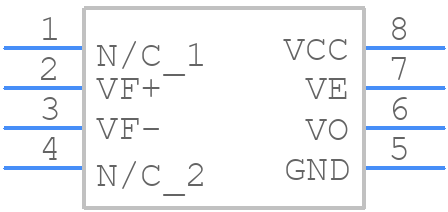

6N137SDM - onsemi - PCB symbol
click to zoom
PCB Footprints
6N137SDM - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - PDIP8 GW CASE 709AC ISSUE O
click to zoom
3D Models
6N137SDM - onsemi - 3D model - Small Outline Packages - PDIP8 GW CASE 709AC ISSUE O
click to zoom

6N137SDM Details

  • Manufacturer Part Number:

    6N137SDM

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    PDIP-8 GW

  • Package Description:

    DIP-8

  • Manufacturer Package Code:

    709AC

  • Country Of Origin:

    Thailand

  • HTS Code:

    8541.40.80.00

  • Manufacturer:

    onsemi

  • YTEOL:

    7

  • Additional Feature:

    CMOS COMPATIBLE, UL RECOGNIZED

  • Configuration:

    SINGLE

  • Data Rate-Nom:

    10 MBps

  • Forward Current-Max:

    0.05 A

  • Isolation Voltage-Max:

    5000 V

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Elements:

    1

  • Number of Functions:

    1

  • On-State Current-Max:

    0.05 A

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    LOGIC IC OUTPUT OPTOCOUPLER

  • Packing Method:

    TR

  • Power Dissipation-Max:

    0.085 W

  • Response Time-Max:

    1e-7 s

  • Response Time-Nom:

    4e-8 ns

  • Shape:

    RECTANGULAR

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    5.5 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

6N137SDM Frequently Asked Questions (FAQs)

  • The maximum allowable voltage that can be applied to the input pins is 5V, as exceeding this voltage can cause damage to the device.
  • To ensure reliable operation in high-temperature environments, it is recommended to derate the device's current handling capability and ensure good thermal management, such as using a heat sink or providing adequate airflow.
  • The recommended input current for the 6N137SDM is 5mA to 10mA, depending on the specific application requirements. Exceeding the recommended input current can reduce the device's lifespan.
  • While the 6N137SDM is primarily designed for low-frequency applications, it can be used in high-frequency applications up to 25 kHz. However, the device's performance may degrade at higher frequencies, and additional filtering or signal conditioning may be required.
  • To minimize EMI when using the 6N137SDM, it is recommended to use proper PCB layout techniques, such as separating the input and output circuits, using shielding, and minimizing loop areas.
