6N137TSR2VM - onsemi

Description: Logic gate output; U.L. recognized (File # E90700, Vol. 2); Fan-out of 8 over -40°C to +85°C; Superior CMR – 10 kV/µs; Wired OR-open collector; Strobable output; Very high speed – 10 MBit/s

Download 6N137TSR2VM Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

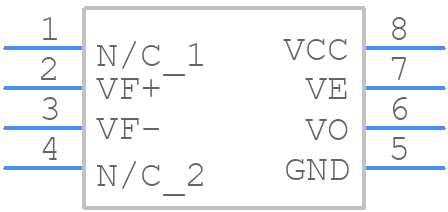

Symbol
6N137TSR2VM - onsemi - PCB symbol
click to zoom
PCB Footprints
6N137TSR2VM - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - PDIP8 GW CASE 709AC ISSUE O_2023
click to zoom
3D Models
6N137TSR2VM - onsemi - 3D model - Small Outline Packages - PDIP8 GW CASE 709AC ISSUE O_2023
click to zoom

6N137TSR2VM Details

  • Manufacturer Part Number:

    6N137TSR2VM

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    PDIP-8 GW

  • Manufacturer Package Code:

    709AD

  • Country Of Origin:

    Thailand

  • HTS Code:

    8541.40.80.00

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    9

  • Additional Feature:

    UL APPROVED

  • Configuration:

    SINGLE

  • Data Rate-Nom:

    10 MBps

  • Forward Current-Max:

    0.05 A

  • Isolation Voltage-Max:

    5000 V

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Elements:

    1

  • Number of Functions:

    1

  • On-State Current-Max:

    0.025 A

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    LOGIC IC OUTPUT OPTOCOUPLER

  • Packing Method:

    TR

  • Power Dissipation-Max:

    0.085 W

  • Response Time-Max:

    1e-7 s

  • Response Time-Nom:

    4e-8 ns

  • Shape:

    RECTANGULAR

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    5.5 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

6N137TSR2VM Frequently Asked Questions (FAQs)

  • The maximum allowable voltage that can be applied to the input pins is 5.5V, as exceeding this voltage can cause damage to the device.
  • To ensure reliable operation in high-temperature environments, it's essential to follow proper thermal management practices, such as providing adequate heat sinking and ensuring good airflow around the device.
  • The recommended input current for the 6N137TSR2VM is between 1mA and 10mA, depending on the specific application requirements and desired switching speed.
  • While the 6N137TSR2VM is suitable for high-frequency applications, its bandwidth is limited to around 10MHz. For higher-frequency applications, a different optocoupler model may be more suitable.
  • To minimize EMI, it's essential to follow proper PCB layout practices, such as keeping the optocoupler away from high-frequency signals, using shielding, and implementing proper grounding techniques.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

6N137TSR2VM Overview

Use the download button to access the 6N137TSR2VM schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 6N137, or try a keyword search, such as Optocoupler
