A good PCB layout practice is to keep the input and output circuits separate, use a ground plane, and minimize the loop area of the signal traces to reduce EMI. Additionally, it's recommended to use a shielded cable for the input signal and to keep the optocoupler away from high-frequency components.
To ensure reliability in high-temperature applications, it's essential to follow the recommended derating curves for the device, ensure good thermal management, and avoid exceeding the maximum junction temperature (Tj) of 150°C. Additionally, consider using a heat sink or thermal interface material to reduce the thermal resistance.
The maximum allowable voltage that can be applied to the input of the 6N137TSVM is 5.5V, as specified in the datasheet. Exceeding this voltage may damage the device or affect its reliability.
Yes, the 6N137TSVM can be used in high-speed applications, but the maximum data transfer rate is limited to 10 Mbps. The device's propagation delay and rise/fall times should be considered when designing high-speed circuits.
The current-limiting resistor (R1) should be chosen based on the input voltage, the desired LED current, and the recommended operating conditions. A good starting point is to use the equation R1 = (Vin - 1.2V) / I_LED, where Vin is the input voltage and I_LED is the desired LED current.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
6N137TSVM Overview

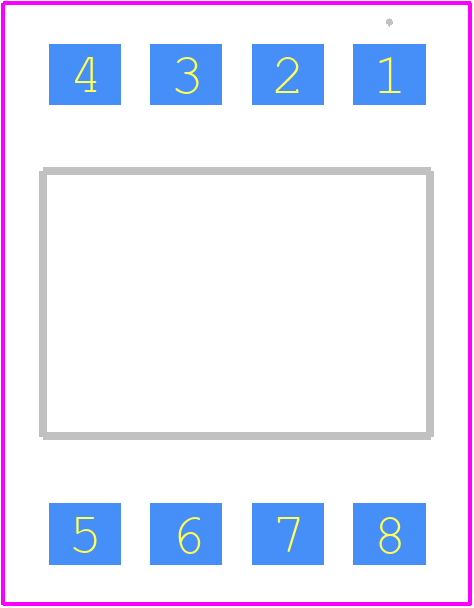

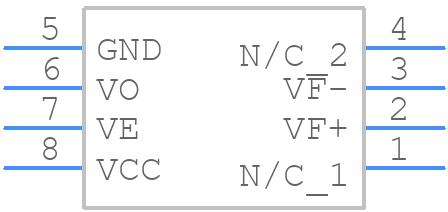

Use the download button to access the 6N137TSVM schematic symbol, PCB footprint, and 3D model.
