The recommended operating temperature range for the 6N138(F) is -40°C to 100°C. However, it's essential to note that the device's performance may degrade at extreme temperatures, and the maximum junction temperature should not exceed 125°C.
To ensure reliability in high-voltage applications, it's crucial to follow proper PCB layout and design guidelines, such as keeping the optocoupler away from high-voltage tracks, using adequate creepage and clearance distances, and providing sufficient isolation between the input and output circuits.
The maximum allowable current for the 6N138(F) output transistor is 20mA. Exceeding this current may lead to device damage or reduced lifespan. It's essential to ensure that the output current is within the specified limit to maintain device reliability.
The 6N138(F) is not suitable for high-frequency applications above 1MHz due to its limited bandwidth. For high-frequency applications, consider using a high-speed optocoupler like the Toshiba TLP2361 or TLP2362, which are designed for frequencies up to 10MHz.
To handle ESD protection for the 6N138(F), it's recommended to follow proper handling and storage procedures, such as using anti-static bags, wrist straps, and mats. Additionally, consider adding ESD protection devices, like TVS diodes or ESD arrays, to the PCB design to protect the optocoupler from electrostatic discharge.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
6N138(F) Overview

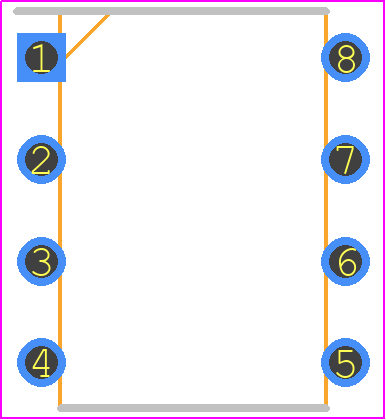

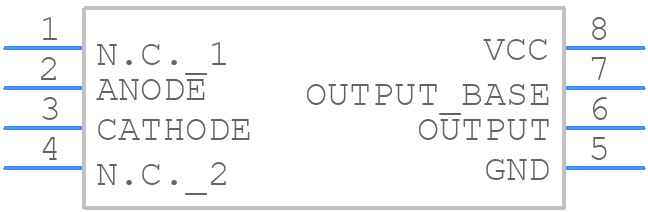

Use the download button to access the 6N138(F) schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 6N138,
or try a keyword search, such as Optocoupler
