6N138 - Everlight

Description: DC-IN 1-CH Darlington With Base DC-OUT 8-Pin DIP Tube

Download 6N138 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

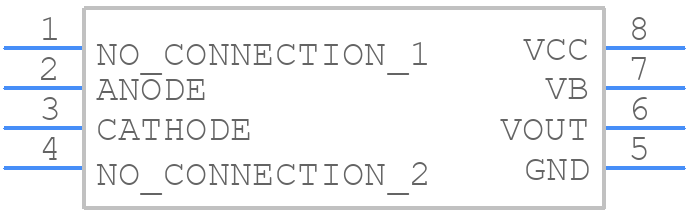

6N138 - Everlight - PCB symbol
click to zoom
PCB Footprints
6N138 - Everlight PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - 8 PIN DIP
click to zoom
3D Models
6N138 - Everlight - 3D model - Dual-In-Line Packages - 8 PIN DIP
click to zoom

6N138 Details

  • Manufacturer Part Number:

    6N138

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DIP-8

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.40.80.00

  • Manufacturer:

    Everlight Electronics Co Ltd

  • YTEOL:

    7

  • Additional Feature:

    UL APPROVED

  • Configuration:

    SINGLE

  • Forward Current-Max:

    0.02 A

  • Isolation Voltage-Max:

    5000 V

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Number of Elements:

    1

  • Number of Functions:

    1

  • On-State Current-Max:

    0.02 A

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    DARLINGTON OUTPUT OPTOCOUPLER

  • Packing Method:

    TUBE

  • Response Time-Max:

    0.00005 s

  • Response Time-Nom:

    0.000008 ns

  • Shape:

    RECTANGULAR

  • Surface Mount:

    NO

6N138 Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the 6N138 is -40°C to 100°C.
  • To ensure reliability in high-temperature applications, it's recommended to derate the device's current and voltage ratings according to the temperature derating curve provided in the datasheet.
  • The maximum allowable lead temperature for the 6N138 during soldering is 260°C for 10 seconds.
  • Yes, the 6N138 is suitable for use in high-humidity environments, but it's recommended to follow proper moisture-sensitive device handling and storage procedures to prevent damage.
  • To prevent ESD damage, handle the 6N138 with anti-static wrist straps, mats, or other ESD-protective equipment, and store the devices in anti-static packaging.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

6N138 Overview

Use the download button to access the 6N138 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search or try a keyword search, such as Optocoupler
