6N138 - Lite-On

Description: High Speed Optocouplers Darlington 100KBd Transistor Output

Download 6N138 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

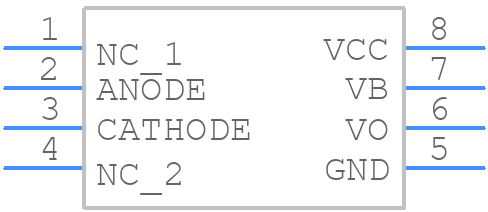

6N138 - Lite-On - PCB symbol
click to zoom
PCB Footprints
6N138 - Lite-On PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - 6N138
click to zoom
3D Models
6N138 - Lite-On - 3D model - Dual-In-Line Packages - 6N138
click to zoom

6N138 Details

  • Manufacturer Part Number:

    6N138

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DIP-8

  • HTS Code:

    8541.40.80.00

  • Manufacturer:

    Lite-On Semiconductor Corporation

  • YTEOL:

    7

  • Additional Feature:

    TTL COMPATIBLE

  • Configuration:

    SINGLE

  • Forward Current-Max:

    0.02 A

  • Isolation Voltage-Max:

    2500 V

  • Number of Elements:

    1

  • Number of Functions:

    1

  • On-State Current-Max:

    0.06 A

  • Operating Temperature-Max:

    70 °C

  • Optoelectronic Device Type:

    LOGIC IC OUTPUT OPTOCOUPLER

  • Packing Method:

    TUBE

6N138 Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the 6N138 is -40°C to 100°C.
  • To ensure reliability in high-temperature applications, it is recommended to derate the device's current and voltage ratings according to the datasheet's thermal derating curve.
  • The maximum allowable voltage for the 6N138's input LED is 5V, but it is recommended to operate within the recommended voltage range of 1.2V to 1.4V for optimal performance.
  • The correct resistor value for the input LED can be calculated using the formula: R = (Vcc - Vf) / If, where Vcc is the supply voltage, Vf is the forward voltage of the LED, and If is the desired forward current.
  • The typical propagation delay time for the 6N138 is around 2-3 μs, but this can vary depending on the specific application and operating conditions.
