The recommended operating temperature range for the 6N138 is -40°C to 100°C. However, it's essential to note that the device's performance may degrade at extreme temperatures, and the maximum junction temperature should not exceed 125°C.
To ensure proper biasing, the input diode (anode-cathode) should be forward-biased with a current of at least 1 mA, and the output transistor (base-emitter) should be reverse-biased with a voltage of at least 3 V. Additionally, the output transistor's collector should be connected to a suitable load or pull-up resistor.
The 6N138 has a maximum allowable isolation voltage of 5 kVrms between the input and output. This means that the device can withstand a maximum voltage difference of 5 kVrms between the input and output pins without compromising its electrical isolation.
The 6N138 is not suitable for high-frequency applications above 1 MHz due to its limited bandwidth. For high-frequency applications, consider using a faster optocoupler like the Toshiba TLP236L or TLP237L, which have bandwidths up to 10 MHz.
To prevent electrostatic discharge (ESD) damage, handle the 6N138 with care, using anti-static wrist straps, mats, or other ESD protection devices. Avoid touching the device's pins or leads, and ensure that the device is stored in an anti-static package or bag when not in use.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
6N138 Overview

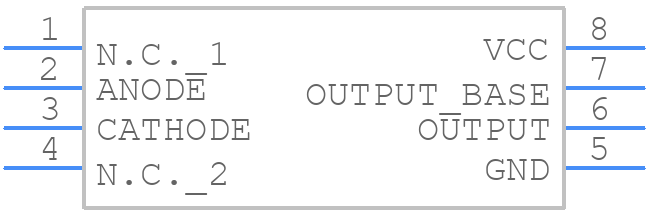

Use the download button to access the 6N138 schematic symbol, PCB footprint, and 3D model.
