6N138 - Vishay

Description: Vishay 6N138 DC Input Darlington Output Optocoupler, Through Hole, 8-Pin DIP

Download 6N138 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

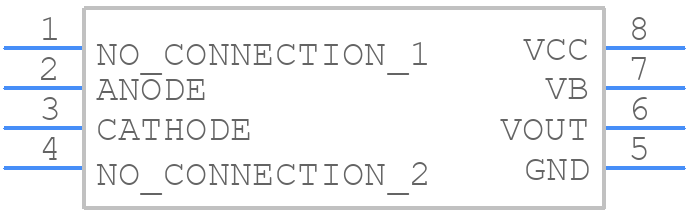

Symbol
6N138 - Vishay - PCB symbol
click to zoom
PCB Footprints
6N138 - Vishay PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - 6N138
click to zoom
3D Models
6N138 - Vishay - 3D model - Dual-In-Line Packages - 6N138
click to zoom

6N138 Details

  • Manufacturer Part Number:

    6N138

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    DIP-8

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.40.80.00

  • Manufacturer:

    Vishay Intertechnologies

  • YTEOL:

    0

  • Additional Feature:

    CMOS COMPATIBLE

  • Configuration:

    SINGLE

  • Current Transfer Ratio-Min:

    300%

  • Forward Current-Max:

    0.025 A

  • Forward Voltage-Max:

    1.7 V

  • Isolation Voltage-Max:

    5300 V

  • JESD-609 Code:

    e3

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Number of Elements:

    1

  • Number of Functions:

    1

  • On-State Current-Max:

    0.06 A

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -55 °C

  • Optoelectronic Device Type:

    LOGIC IC OUTPUT OPTOCOUPLER

  • Power Dissipation-Max:

    0.1 W

  • Response Time-Max:

    0.000035 s

  • Surface Mount:

    NO

  • Terminal Finish:

    Matte Tin (Sn)

6N138 Frequently Asked Questions (FAQs)

  • The maximum allowable voltage that can be applied to the input pins is 5V, as exceeding this voltage can cause damage to the internal LED.
  • To ensure reliable operation in high-temperature environments, it's essential to derate the device's current handling capability according to the temperature derating curve provided in the datasheet.
  • The recommended input current for the 6N138 is typically in the range of 1-10mA, depending on the specific application requirements and the desired output current transfer ratio.
  • While the 6N138 can be used for high-frequency applications, its bandwidth is limited to around 10kHz. For higher frequency applications, consider using a faster optocoupler like the 6N139 or 6N140.
  • To minimize EMI, use proper PCB layout techniques, such as separating the input and output circuits, using a ground plane, and adding shielding if necessary.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
