The recommended operating temperature range for the 6N138S-TA1-L is -40°C to 100°C. However, it's essential to note that the device's performance may degrade at extreme temperatures, and the maximum junction temperature should not exceed 150°C.
To ensure the reliability of the 6N138S-TA1-L in high-voltage applications, it's crucial to follow proper PCB design and layout guidelines, use adequate creepage and clearance distances, and ensure that the device is operated within its specified voltage ratings. Additionally, consider using a voltage limiter or surge protector to prevent overvoltage conditions.
The maximum allowable current through the output transistor of the 6N138S-TA1-L is 50 mA. Exceeding this current limit may cause the device to overheat, leading to reduced reliability or even failure.
The 6N138S-TA1-L is not suitable for high-frequency applications above 1 MHz due to its limited bandwidth. For high-frequency applications, consider using a different optocoupler with a higher bandwidth rating.
To handle ESD protection when working with the 6N138S-TA1-L, follow proper ESD handling procedures, such as using an ESD wrist strap, mat, or workstation. Ensure that the device is stored in an ESD-protective package, and avoid touching the device's pins or leads during handling.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
6N138S-TA1-L Overview

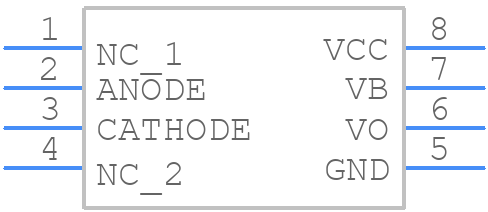

Use the download button to access the 6N138S-TA1-L schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like 6N138,
or try a keyword search, such as Optocoupler
