6N139 - Toshiba

Description: TOSHIBA - 6N139 - Optocoupler, Darlington Output, 1 Channel, DIP, 8 Pins, 20 mA, 2.5 kV, 400 %

Download 6N139 Model

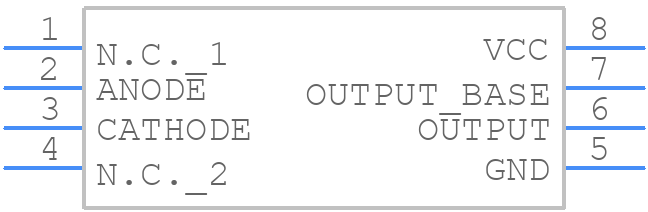

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
6N139 - Toshiba PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - 11-10C4 (8PDIP)
click to zoom
3D Models
6N139 - Toshiba  - 3D model - Dual-In-Line Packages - 11-10C4 (8PDIP)
click to zoom

6N139 Details

  • Manufacturer Part Number:

    6N139

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    11-10C4, 8 PIN

  • HTS Code:

    8541.40.80.00

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    0

  • Additional Feature:

    UL RECOGNIZED, CMOS COMPATIBLE

  • Configuration:

    SINGLE

  • Current Transfer Ratio-Min:

    400%

  • Data Rate-Nom:

    0.1 MBps

  • Forward Current-Max:

    0.02 A

  • Forward Voltage-Max:

    1.7 V

  • Isolation Voltage-Max:

    2500 V

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Number of Elements:

    1

  • Number of Functions:

    1

  • On-State Current-Max:

    0.06 A

  • Operating Temperature-Max:

    70 °C

  • Optoelectronic Device Type:

    LOGIC IC OUTPUT OPTOCOUPLER

  • Power Dissipation-Max:

    0.1 W

  • Response Time-Max:

    0.00006 s

  • Response Time-Nom:

    0.000005 ns

  • Surface Mount:

    NO

6N139 Frequently Asked Questions (FAQs)

  • The maximum allowable voltage that can be applied to the input pins is 5V, exceeding which may cause damage to the device.
  • To ensure reliability in high-temperature applications, it is recommended to derate the device's current and voltage ratings according to the temperature derating curve provided in the datasheet.
  • The recommended layout and spacing for the 6N139 on a PCB is to keep the input and output circuits separate, with a minimum spacing of 1.5 mm between them, and to use a ground plane to minimize electromagnetic interference.
  • The 6N139 is not suitable for high-frequency applications above 1 MHz due to its limited bandwidth. For high-frequency applications, a different optocoupler with a higher bandwidth should be considered.
  • To troubleshoot issues with the 6N139, check the input voltage and current, ensure proper PCB layout and spacing, and verify that the device is operated within its recommended ratings. If issues persist, consult the datasheet or contact Toshiba's technical support.
