6N139SDM - onsemi

Description: VDE recognition (pending) – Ordering option V, e.g., 6N138VM ; U.L. recognized (File # E90700, Vol. 2) ; CTR guaranteed 0–70°C; Low current – 0.5mA ; Superior CTR-2000%; Dual Channel – HCPL2730M, HCPL2731M (coming soon); Superior CMR-10kV/µs

Download 6N139SDM Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

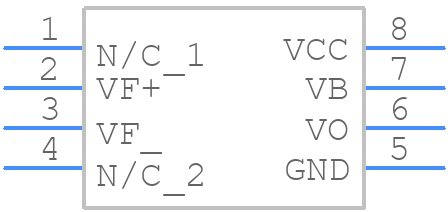

6N139SDM - onsemi - PCB symbol
click to zoom
PCB Footprints
6N139SDM - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - PDIP8 GW CASE 709AC ISSUE O_2023-1
click to zoom

6N139SDM Details

  • Manufacturer Part Number:

    6N139SDM

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    PDIP-8 GW

  • Manufacturer Package Code:

    709AC

  • Country Of Origin:

    Thailand

  • HTS Code:

    8541.40.80.00

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    7

  • Additional Feature:

    UL RECOGNIZED

  • Configuration:

    SINGLE

  • Current Transfer Ratio-Min:

    400%

  • Forward Current-Max:

    0.02 A

  • Forward Voltage-Max:

    1.7 V

  • Isolation Voltage-Max:

    5000 V

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Elements:

    1

  • Number of Functions:

    1

  • On-State Current-Max:

    0.06 A

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    LOGIC IC OUTPUT OPTOCOUPLER

  • Packing Method:

    TR, 13 INCH

  • Power Dissipation-Max:

    0.1 W

  • Response Time-Max:

    0.00009 s

  • Response Time-Nom:

    0.0000136 ns

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

6N139SDM Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the 6N139SDM is -40°C to 100°C.
  • To ensure proper biasing, the 6N139SDM requires a minimum of 1.4V forward voltage on the LED and a maximum of 5mA forward current. The output stage should be biased with a voltage source between 4.5V and 30V.
  • The maximum allowable isolation voltage for the 6N139SDM is 5000Vrms for 1 minute, and 1000Vrms continuous.
  • To prevent ESD damage, handle the 6N139SDM with an anti-static wrist strap or mat, and ensure all equipment is properly grounded. Avoid touching the device's pins or leads.
  • The typical propagation delay time for the 6N139SDM is around 2-3μs, but this can vary depending on the specific application and operating conditions.
