The recommended PCB layout for the 6N139VM involves keeping the input and output circuits separate, using a ground plane to reduce noise, and minimizing the length of the traces between the optocoupler and the surrounding components. A good layout practice is to use a star topology for the power supply connections and to keep the sensitive analog circuits away from the digital circuits.
To ensure reliable operation of the 6N139VM in high-temperature environments, it is essential to follow proper derating guidelines for the device. The maximum junction temperature (Tj) of the 6N139VM is 125°C, and the device should be derated accordingly based on the ambient temperature. Additionally, ensure good thermal management by providing adequate heat sinking and airflow around the device.
The maximum allowable voltage for the 6N139VM is 80 V, which is the maximum rating for the device. However, it is recommended to operate the device at a voltage below 60 V to ensure reliable operation and to prevent damage from voltage spikes or transients.
The 6N139VM has built-in ESD protection, but it is still essential to follow proper ESD handling procedures during assembly and testing. Use ESD-safe materials, such as wrist straps and mats, and ensure that the device is handled in a static-free environment. Additionally, consider adding external ESD protection devices, such as TVS diodes, to further protect the device from ESD events.
The recommended input current for the 6N139VM is typically in the range of 1-10 mA, depending on the specific application requirements. However, the device can handle input currents up to 60 mA. It is essential to ensure that the input current is within the recommended range to prevent device damage and ensure reliable operation.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
6N139VM Overview

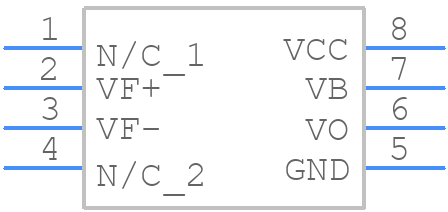

Use the download button to access the 6N139VM schematic symbol, PCB footprint, and 3D model.
