Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good layout practices, such as keeping the input and output traces separate, using a solid ground plane, and minimizing parasitic inductance. Additionally, consider using a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
The 6PAIC3104TRHBRQ1 is rated for operation from -40°C to 125°C. Ensure proper thermal management by providing adequate heat sinking, using thermal interface materials, and keeping the device away from heat sources. Monitor the device's temperature using the thermal monitoring pins (TMON) and adjust the system design accordingly.
Not using the recommended input and output capacitors can lead to reduced performance, increased noise, and potential instability. The capacitors help filter out noise, reduce ringing, and ensure proper voltage regulation. Failure to use them may result in system malfunction or failure.
The power-good signal indicates the device's output voltage is within the specified range. To troubleshoot PG issues, check the output voltage, input voltage, and enable pins. Verify that the device is properly configured and that the output voltage is within the specified range. Use an oscilloscope to monitor the PG signal and identify any anomalies.
In high-reliability or safety-critical applications, consider using redundant systems, implementing fault detection and correction mechanisms, and ensuring compliance with relevant industry standards (e.g., IEC 61508, ISO 26262). Additionally, perform thorough testing, validation, and verification to ensure the device operates as expected in the target environment.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
6PAIC3104TRHBRQ1 Overview

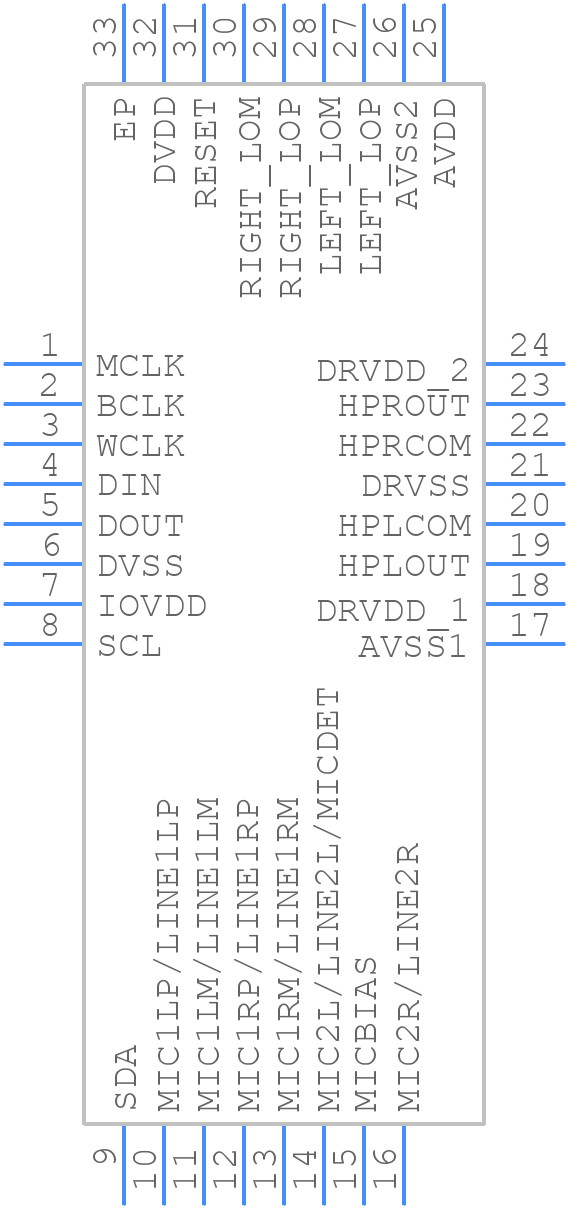

Use the download button to access the 6PAIC3104TRHBRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 6PAIC,
or try a keyword search, such as Codecs
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
