6PAIC3109TWRHMRQ1 - Texas Instruments

Description: Automotive Low-Power 96kHz Mono Audio Codec

Download 6PAIC3109TWRHMRQ1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

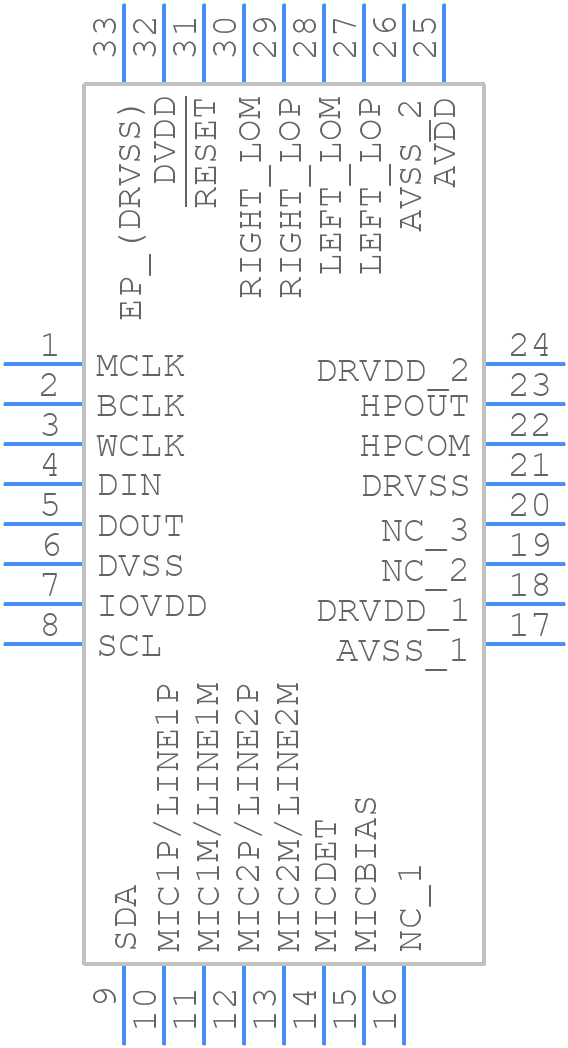

Symbol
6PAIC3109TWRHMRQ1 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
6PAIC3109TWRHMRQ1 - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RHM0032A
click to zoom
3D Models
6PAIC3109TWRHMRQ1 - Texas Instruments - 3D model - Quad Flat No-Lead - RHM0032A
click to zoom

6PAIC3109TWRHMRQ1 Details

  • Manufacturer Part Number:

    6PAIC3109TWRHMRQ1

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    VQFNP-32

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Date Of Intro:

    2017-09-07

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Filter:

    YES

  • JESD-30 Code:

    S-PQCC-N32

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    0.9 mm

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    PCM CODEC

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

6PAIC3109TWRHMRQ1 Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general high-frequency PCB design guidelines, such as using a solid ground plane, minimizing trace lengths, and using 50-ohm transmission lines.
  • The 6PAIC3109TWRHMRQ1 requires a specific biasing scheme to operate optimally. Refer to the datasheet for the recommended biasing circuit and ensure that the voltage and current levels are within the specified ranges.
  • The 6PAIC3109TWRHMRQ1 can generate significant heat, so it's essential to ensure proper thermal management. Use a heat sink or thermal pad, and ensure good airflow around the device. Refer to the datasheet for thermal resistance and junction temperature specifications.
  • Start by verifying the power supply and biasing conditions. Check for proper PCB layout and component placement. Use oscilloscopes and signal generators to debug the signal chain. Refer to the datasheet and application notes for troubleshooting guidelines.
  • The 6PAIC3109TWRHMRQ1 is a sensitive device and requires proper ESD protection. Use ESD-safe handling and storage procedures, and ensure that the PCB design includes ESD protection components, such as TVS diodes or ESD arrays.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

6PAIC3109TWRHMRQ1 Overview

Use the download button to access the 6PAIC3109TWRHMRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 6PAIC, or try a keyword search, such as Codecs
