6PCV-03-009 - TE Connectivity

Description: Body Features: Product Orientation Vertical | Primary Product Color Black | Barrier Strip Style Tri-Barrier | Configuration Features: Number of Levels 1 | Number of Rows 1 | Number of Positions 3 | Contact Features: Contact Base Material Copper Alloy | Contact Current Rating (Max) 25 AMP | PCB Contact Termination Area Plating Material Tin | Dimensions: Product Length 1.936 INCH | Wire Size 22 – 12 AWG | Product Length 49.17 MM | Wire Size .326 – 3.31 MMSQ | Electrical Characteristics: Operating Voltage

Download 6PCV-03-009 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
6PCV-03-009 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

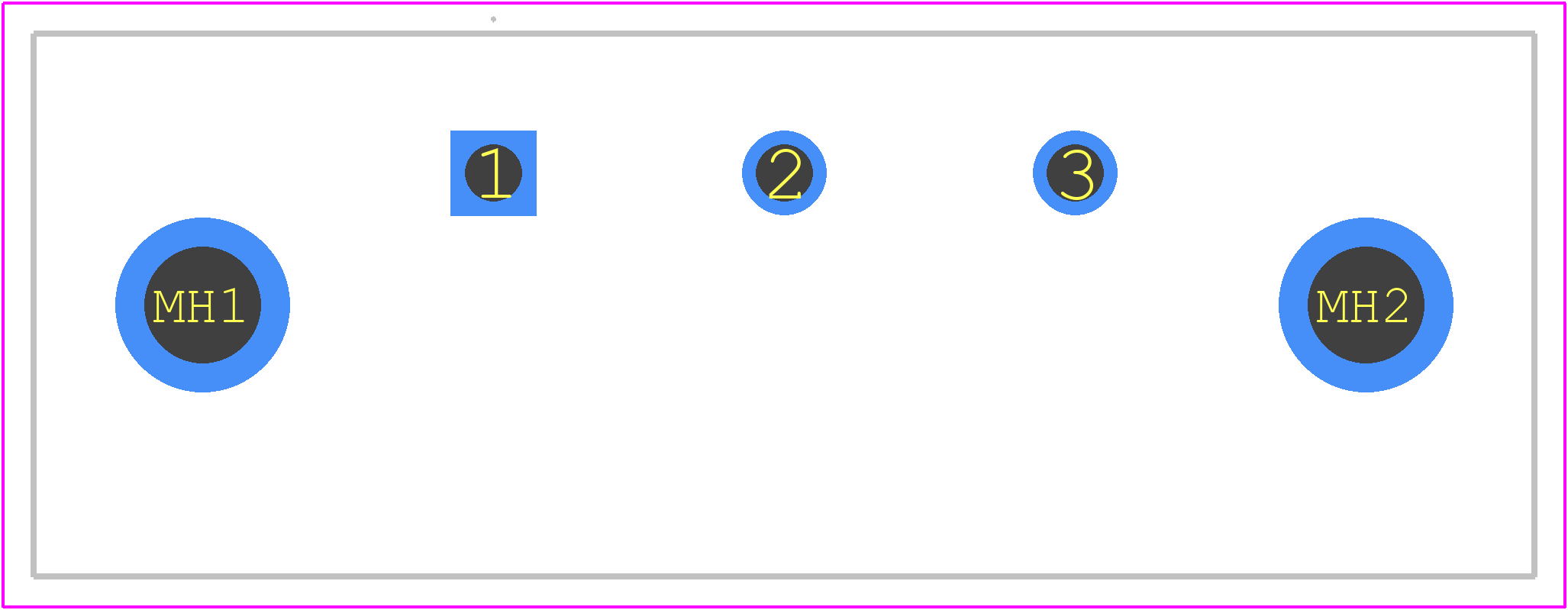

6PCV-03-009 - TE Connectivity PCB footprint - Other - Other - 6PCV-03-009-1
click to zoom
3D Models
6PCV-03-009 - TE Connectivity - 3D model - Other - 6PCV-03-009-1
click to zoom

6PCV-03-009 Details

  • Manufacturer Part Number:

    6PCV-03-009

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Factory Lead Time:

    41 Weeks

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    6.5

  • Additional Feature:

    STANDARD: UL94V-0, POLYAMIDE

  • Fastening Method:

    SCREW

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    3

  • Rated Current:

    25 A

  • Rated Voltage:

    300 V

  • Safety Approval:

    UL

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

  • Wire Cross Section:

    3.31 mm2

  • Wire Gauge:

    12 AWG

6PCV-03-009 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals of 6PCV-03-009 is 0.5 Nm to 1.5 Nm, depending on the wire size and type.
  • While the 6PCV-03-009 connector is designed for industrial applications, it is not specifically rated for outdoor use. However, it can be used in outdoor environments with proper sealing and protection against moisture and environmental factors.
  • Yes, the 6PCV-03-009 connector can be used with wire sizes other than AWG 20-16, but the wire size range should be within the connector's specified range. Consult the datasheet or contact TE Connectivity for specific guidance.
  • The 6PCV-03-009 connector is designed for industrial applications and can withstand moderate vibration. However, for high-vibration applications, additional measures such as securing the connector with cable ties or using a vibration-resistant connector may be necessary.
  • The 6PCV-03-009 connector is rated for operating temperatures up to 105°C. For applications above this temperature, consult the datasheet or contact TE Connectivity for specific guidance or alternative connector options.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

6PCV-03-009 Overview

Use the download button to access the 6PCV-03-009 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 6PCV-, or try a keyword search, such as Terminals and Terminal Blocks

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
