6PCV-08-006 - TE Connectivity

Description: Barrier Terminal Blocks BARRIER STRIP 8P

Download 6PCV-08-006 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
6PCV-08-006 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

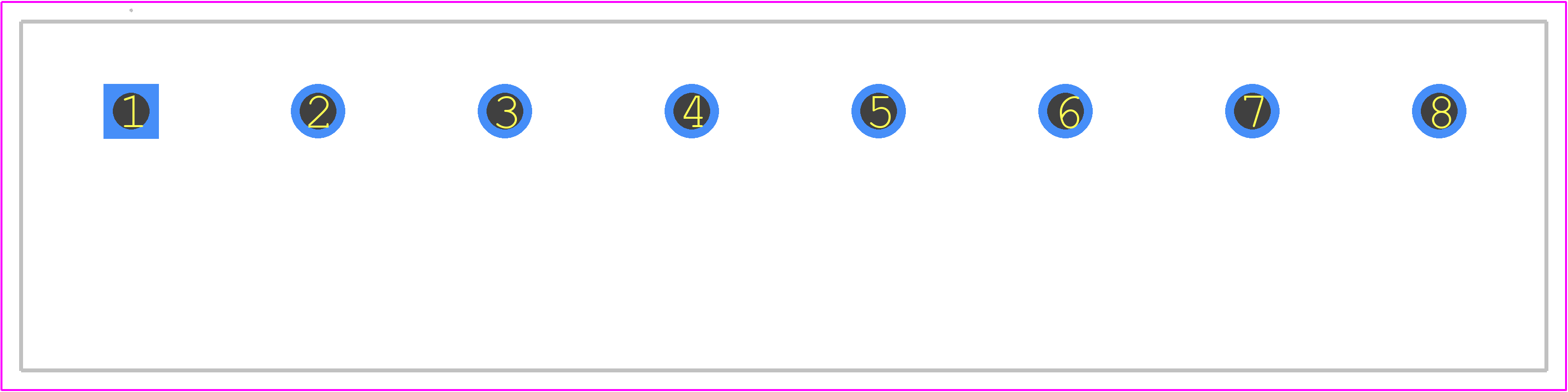

6PCV-08-006 - TE Connectivity PCB footprint - Other - Other - 6PCV-08-006-1
click to zoom
3D Models
6PCV-08-006 - TE Connectivity - 3D model - Other - 6PCV-08-006-1
click to zoom

6PCV-08-006 Details

  • Manufacturer Part Number:

    6PCV-08-006

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Factory Lead Time:

    38 Weeks, 5 Days

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    6

  • Additional Feature:

    STANDARD: UL94V-0, POLYAMIDE

  • Fastening Method:

    SCREW

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    8

  • Rated Current:

    25 A

  • Rated Voltage:

    600 V

  • Safety Approval:

    UL

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

  • Wire Cross Section:

    3.31 mm2

  • Wire Gauge:

    12 AWG

6PCV-08-006 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs).
  • Yes, the 6PCV-08-006 is designed to withstand vibrations and can be used in applications with moderate to high vibration levels.
  • Yes, the 6PCV-08-006 is rated for outdoor use and can withstand exposure to moisture and temperature fluctuations.
  • The maximum wire size that can be used with the 6PCV-08-006 is 14 AWG (2.5 mm²).
  • The 6PCV-08-006 is rated for operation up to 125°C (257°F), but it's recommended to derate the current carrying capacity at higher temperatures.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

6PCV-08-006 Overview

Use the download button to access the 6PCV-08-006 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 6PCV-, or try a keyword search, such as Terminals and Terminal Blocks

About TE Connectivity
