6PCV-09-006 - TE Connectivity

Description: Body Features: Product Orientation Vertical | Barrier Strip Style Tri-Barrier | Primary Product Color Black | Configuration Features: Number of Positions 9 | Number of Rows 1 | Number of Levels 1 | Contact Features: Contact Current Rating (Max) 25 AMP | PCB Contact Termination Area Plating Material Tin | Contact Base Material Copper Alloy | Contact Current Rating (Max) 5 AMP | Dimensions: Product Length 87.27 MM | Wire Size .326 – 3.31 MMSQ | Wire Size 22 – 12 AWG | Product Length 3.436 INCH | Electrica

Download 6PCV-09-006 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
6PCV-09-006 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

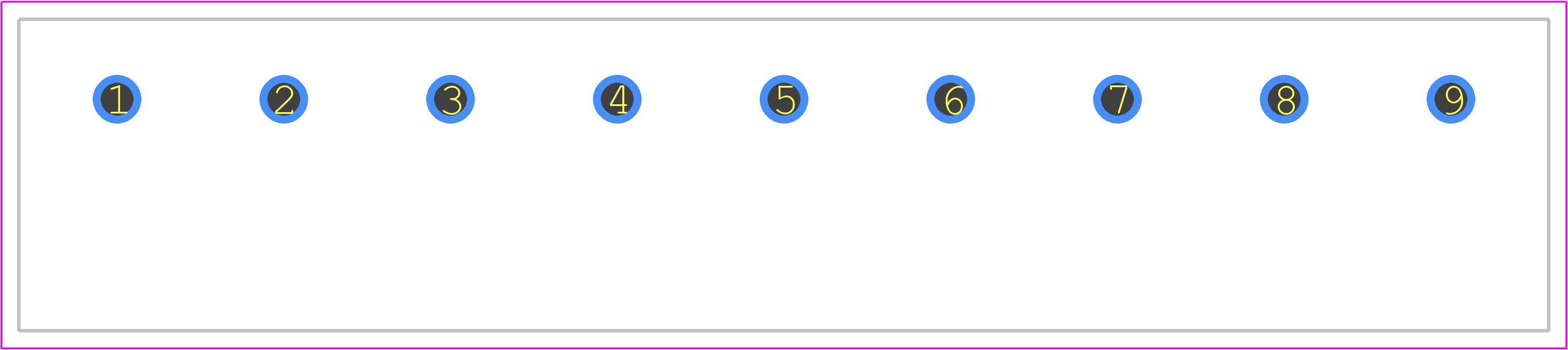

6PCV-09-006 - TE Connectivity PCB footprint - Other - Other - 6PCV-09-006-1
click to zoom
3D Models
6PCV-09-006 - TE Connectivity - 3D model - Other - 6PCV-09-006-1
click to zoom

6PCV-09-006 Details

  • Manufacturer Part Number:

    6PCV-09-006

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Factory Lead Time:

    22 Weeks, 5 Days

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    6.3

  • Additional Feature:

    STANDARD: UL94V-0, POLYAMIDE

  • Fastening Method:

    SCREW

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    9

  • Rated Current:

    25 A

  • Rated Voltage:

    600 V

  • Safety Approval:

    UL

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

  • Wire Cross Section:

    3.31 mm2

  • Wire Gauge:

    12 AWG

6PCV-09-006 Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.6 Nm (5.3 in-lbs) for the screw terminals.
  • Yes, the connector is suitable for outdoor use, but it's recommended to use a sealant or conformal coating to protect it from environmental factors.
  • Yes, the connector is designed to withstand vibrations up to 10G (10 Hz to 2000 Hz) according to IEC 60068-2-6.
  • The maximum operating temperature range is -40°C to 125°C (-40°F to 257°F).
  • Yes, the connector meets the requirements of UL 1977 and UL 498 standards.
