Part Image

6PCV-12-006 - TE Connectivity

Description: Body Features: Primary Product Color Black | Product Orientation Vertical | Barrier Strip Style Tri-Barrier | Configuration Features: Number of Rows 1 | Number of Levels 1 | Number of Positions 12 | Contact Features: Contact Current Rating (Max) 25 AMP | PCB Contact Termination Area Plating Material Tin | Contact Current Rating (Max) 5 AMP | Contact Base Material Copper Alloy | Dimensions: Product Length 115.85 MM | Wire Size .326 – 3.31 MMSQ | Wire Size 22 – 12 AWG | Product Length 4.561 INCH | Electri

Download 6PCV-12-006 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
6PCV-12-006 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

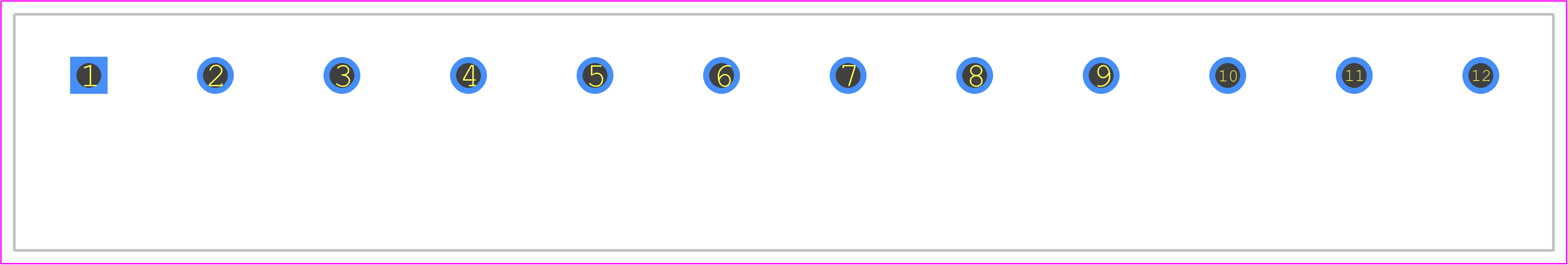

6PCV-12-006 - TE Connectivity PCB footprint - Other - Other - 6PCV-12-006
click to zoom
3D Models
6PCV-12-006 - TE Connectivity - 3D model - Other - 6PCV-12-006
click to zoom

6PCV-12-006 Details

  • Manufacturer Part Number:

    6PCV-12-006

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Factory Lead Time:

    22 Weeks, 5 Days

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    5.75

  • Additional Feature:

    STANDARD: UL94V-0, POLYAMIDE

  • Fastening Method:

    SCREW

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    12

  • Rated Current:

    25 A

  • Rated Voltage:

    600 V

  • Safety Approval:

    UL

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

  • Wire Cross Section:

    3.31 mm2

  • Wire Gauge:

    12 AWG

6PCV-12-006 Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.6 Nm (5.3 in-lbs) for the screw terminals.
  • Yes, the 6PCV-12-006 is designed to withstand vibrations and can be used in high-vibration environments, but it's recommended to follow the manufacturer's guidelines for mounting and securing the connector.
  • The 6PCV-12-006 has a IP67 rating, making it suitable for outdoor use, but it's essential to ensure proper sealing and protection from environmental factors like moisture and UV exposure.
  • The 6PCV-12-006 has an operating temperature range of -40°C to 125°C (-40°F to 257°F), making it suitable for a wide range of applications.
  • While it's technically possible to use a different wire gauge, it's not recommended as it may affect the connector's performance and reliability. It's best to follow the manufacturer's recommended wire gauge specifications.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

6PCV-12-006 Overview

Use the download button to access the 6PCV-12-006 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 6PCV-, or try a keyword search, such as Terminals and Terminal Blocks

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
