6PCV-15-006 - TE Connectivity

Description: Body Features: Product Orientation Vertical | Primary Product Color Black | Barrier Strip Style Tri-Barrier | Configuration Features: Number of Levels 1 | Number of Rows 1 | Number of Positions 15 | Contact Features: Contact Base Material Copper Alloy | Contact Current Rating (Max) 25 AMP | Contact Current Rating (Max) 5 AMP | PCB Contact Termination Area Plating Material Tin | Dimensions: Product Length 5.686 INCH | Product Length 144.42 MM | Wire Size .326 – 3.31 MMSQ | Wire Size 22 – 12 AWG | Electri

Download 6PCV-15-006 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
6PCV-15-006 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

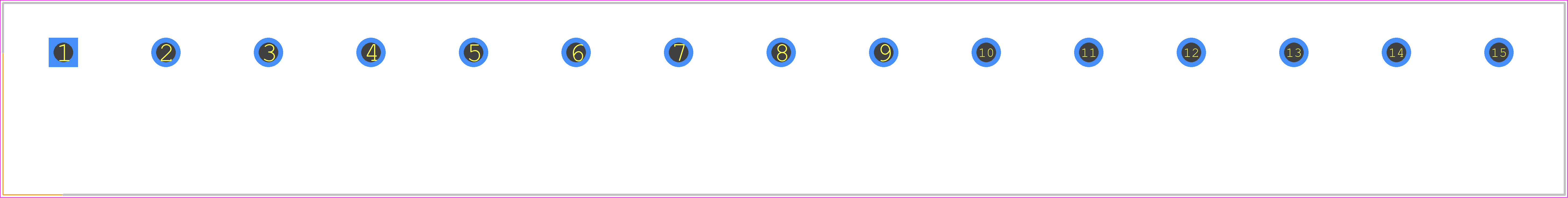

6PCV-15-006 - TE Connectivity PCB footprint - Header, Shrouded - Straight PTH Box - Header, Shrouded - Straight PTH Box - 6PCV-15-006
click to zoom
3D Models
6PCV-15-006 - TE Connectivity - 3D model - Header, Shrouded - Straight PTH Box - 6PCV-15-006
click to zoom

6PCV-15-006 Details

  • Manufacturer Part Number:

    6PCV-15-006

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Factory Lead Time:

    41 Weeks

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    5.78

  • Additional Feature:

    STANDARD: UL94V-0, POLYAMIDE

  • Fastening Method:

    SCREW

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    15

  • Rated Current:

    25 A

  • Rated Voltage:

    600 V

  • Safety Approval:

    UL

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

  • Wire Cross Section:

    3.31 mm2

  • Wire Gauge:

    12 AWG

6PCV-15-006 Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.6 Nm (5.3 in-lbs) for the screw terminals.
  • Yes, the connector is suitable for outdoor use, but it's recommended to use a sealant or conformal coating to protect it from moisture and environmental factors.
  • Yes, the connector is designed to withstand vibrations up to 10G (IEC 60068-2-6) and is suitable for use in high-vibration applications.
  • The maximum operating temperature range for the 6PCV-15-006 connector is -40°C to 125°C (-40°F to 257°F).
  • Yes, the 6PCV-15-006 connector meets the requirements of UL 1977 and UL 498 standards.
