6SVPE220MW - Panasonic

Description: Panasonic Aluminium Polymer Capacitor 220μF 6.3V dc 5mm B6 OS-CON Series, Surface Mount Polymer, ±20% 5 x 5.9mm 5.9mm

Download 6SVPE220MW Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
6SVPE220MW - Panasonic - PCB symbol
click to zoom

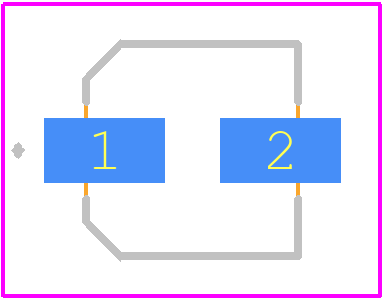

PCB Footprints
6SVPE220MW - Panasonic PCB footprint - Other - Other - B6
click to zoom
3D Models
6SVPE220MW - Panasonic - 3D model - Other - B6
click to zoom

6SVPE220MW Details

  • Manufacturer Part Number:

    6SVPE220MW

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00.20

  • Manufacturer:

    Panasonic Electronic Components

  • YTEOL:

    7

  • Additional Feature:

    ESR IS MEASURED AT 100KHZ

  • Capacitance:

    220 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    5 mm

  • Dielectric Material:

    ALUMINUM (SOLID POLYMER)

  • ESR:

    13 mΩ

  • Height:

    5.9 mm

  • Leakage Current:

    0.5 mA

  • Length:

    5.3 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Shape:

    CYLINDRICAL PACKAGE

  • Package Style:

    SMT

  • Packing Method:

    TR, EMBOSSED, 15 INCH

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    6.3 V

  • Ripple Current:

    157.5 mA

  • Size Code:

    2121

  • Surface Mount:

    YES

  • Tan Delta:

    0.12

  • Terminal Shape:

    FLAT

  • Width:

    5.3 mm

6SVPE220MW Frequently Asked Questions (FAQs)

  • A good PCB layout for the 6SVPE220MW involves placing the capacitor close to the power pins of the IC, using short and wide traces for the power lines, and avoiding vias under the capacitor to minimize inductance.
  • To ensure reliability in high-temperature applications, it's essential to follow the recommended derating guidelines, use a suitable thermal interface material, and ensure good airflow around the component.
  • The maximum allowable voltage derating for the 6SVPE220MW is typically 80% of the rated voltage, but this may vary depending on the specific application and environmental conditions.
  • Yes, the 6SVPE220MW is suitable for high-frequency applications up to 100 kHz, but it's essential to consider the capacitor's equivalent series resistance (ESR) and equivalent series inductance (ESL) when designing the circuit.
  • To prevent moisture-related damage, store the 6SVPE220MW in a dry, cool place, and follow the recommended baking and drying procedures before soldering.
