6WWV-06-008 - TE Connectivity

Description: 6 Position, Tri-Barrier, Solderless Wire Wrap Bottom Termination, Wire-to-Board, 9.53 mm [.375 in] Centerline, 1 Row, 300 V, BUCHANAN 6 Series

Download 6WWV-06-008 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
6WWV-06-008 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

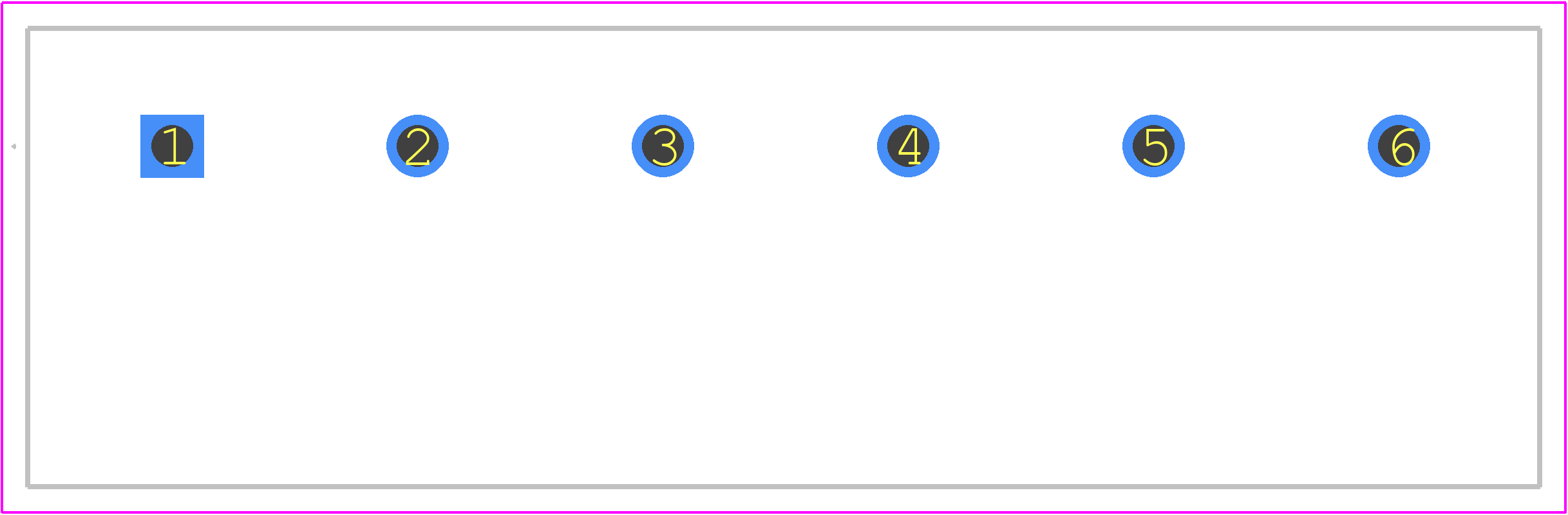

6WWV-06-008 - TE Connectivity PCB footprint - Other - Other - 6WWV-06-008-1
click to zoom
3D Models
6WWV-06-008 - TE Connectivity - 3D model - Other - 6WWV-06-008-1
click to zoom

6WWV-06-008 Details

  • Manufacturer Part Number:

    6WWV-06-008

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Factory Lead Time:

    22 Weeks, 5 Days

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    6.5

  • Additional Feature:

    STANDARD: UL94V-0, POLYAMIDE

  • Fastening Method:

    SCREW

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    6

  • Rated Current:

    25 A

  • Rated Voltage:

    300 V

  • Safety Approval:

    UL

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

  • Wire Cross Section:

    3.31 mm2

  • Wire Gauge:

    12 AWG

6WWV-06-008 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5 Nm to 1.5 Nm, depending on the wire size and type.
  • Yes, the 6WWV-06-008 is designed to withstand vibrations up to 10g, making it suitable for use in high-vibration environments.
  • Yes, the 6WWV-06-008 has a IP67 rating, making it suitable for outdoor use and able to withstand exposure to water and dust.
  • The maximum operating temperature for the 6WWV-06-008 is 125°C, making it suitable for use in high-temperature applications.
  • Yes, the 6WWV-06-008 is compatible with aluminum wires, but it's recommended to use a wire with a minimum of 99.5% aluminum content to ensure reliable connections.
