Part Image

7-174385-5 - TE Connectivity

Description: Conn Multilock Connector RCP 76 POS Solder RA Thru-Hole

Download 7-174385-5 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
7-174385-5 - TE Connectivity - PCB symbol
click to zoom

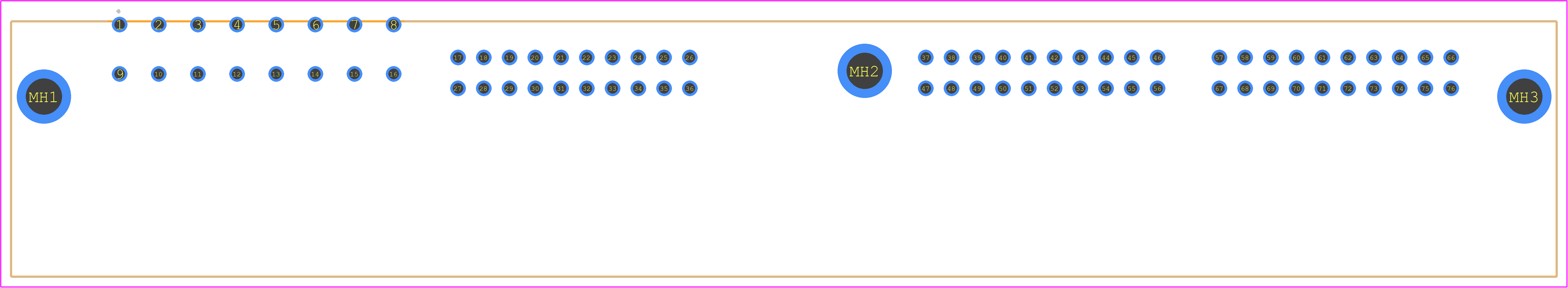

PCB Footprints
7-174385-5 - TE Connectivity PCB footprint - Other - Other - 7-174385-5-3
click to zoom
3D Models
7-174385-5 - TE Connectivity - 3D model - Other - 7-174385-5-3
click to zoom

7-174385-5 Details

  • Manufacturer Part Number:

    7-174385-5

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    0

  • Additional Feature:

    PANEL ATTACHMENT

  • Connector Type:

    COMBINATION LINE CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Matte Tin (Sn)

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Material:

    POLYBUTYLENE TEREPHTHALATE

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mating Information:

    MULTIPAL MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD

  • Option:

    GENERAL PURPOSE

  • Total Number of Contacts:

    76

7-174385-5 Frequently Asked Questions (FAQs)

  • The recommended torque for the 7-174385-5 connector is 0.5-1.5 Nm (4.4-13.3 in-lbs) for the screw locks, and 0.2-0.5 Nm (1.8-4.4 in-lbs) for the jack screws.
  • Yes, the 7-174385-5 connector is designed to withstand high-vibration environments, with a vibration rating of 10-2000 Hz, 10 G peak acceleration.
  • Yes, the 7-174385-5 connector is designed for use in harsh environments, with an operating temperature range of -40°C to 125°C (-40°F to 257°F) and a rating of IP67 for dust and water resistance.
  • The 7-174385-5 connector has a mating cycle life of 500 cycles minimum, making it suitable for applications where frequent mating and unmating are required.
  • Yes, the 7-174385-5 connector is designed for automated assembly, with a pick-and-place compatible design and a tape-and-reel packaging option available.

Trust Checks

This model has been verified by system checks.
System Verified
Sponsored

7-174385-5 Overview

Use the download button to access the 7-174385-5 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 7-174, or try a keyword search, such as Combination Line Connectors
