Part Image

7-5382487-2 - TE Connectivity

Description: Body Features: Retention Post Location None | Connector Profile Standard | Configuration Features: Number of Rows 1 | Number of Positions 72 | Module Orientation Right Angle | Number of Keys 1 | Contact Features: Memory Socket Type Memory Card | PCB Contact Termination Area Plating Material Tin | Contact Base Material Phosphor Bronze | Contact Mating Area Plating Material Gold Flash | Contact Current Rating (Max) 1 AMP | Contact Underplating Material Nickel | Dimensions: Center Retention Hole Diameter 2.45

Download 7-5382487-2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

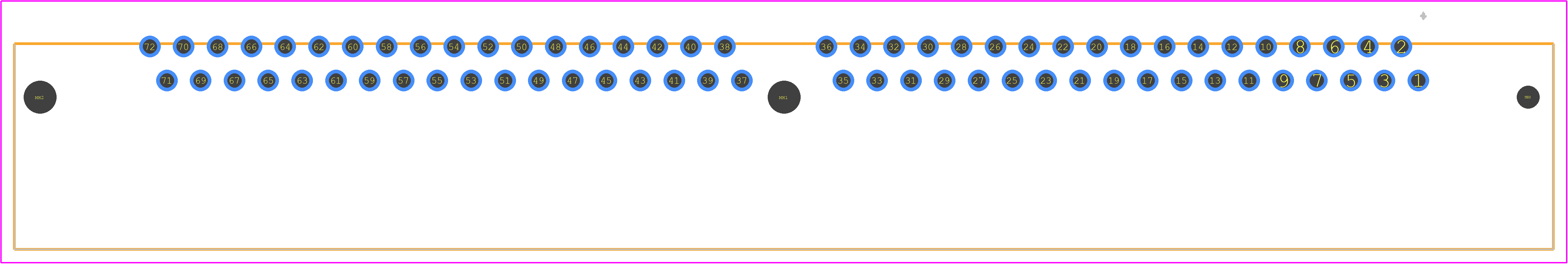

7-5382487-2 - TE Connectivity PCB footprint - Other - Other - 7-5382487-2-4
click to zoom
3D Models
7-5382487-2 - TE Connectivity  - 3D model - Other - 7-5382487-2-4
click to zoom

7-5382487-2 Details

  • Manufacturer Part Number:

    7-5382487-2

  • Brand Name:

    AMP

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • Factory Lead Time:

    8 Weeks, 3 Days

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    7.5

  • Additional Feature:

    ROHS AND ELV COMPLIANT

  • Board Mounting Option:

    PEG

  • Body Breadth:

    0.45 inch

  • Body Depth:

    0.607 inch

  • Body Length:

    4.55 inch

  • Body/Shell Style:

    SOCKET

  • Connector Type:

    CARD EDGE CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Finish Termination:

    Gold (Au) - with Nickel (Ni) barrier

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT APPLICABLE

  • Contact Pattern:

    RECTANGULAR

  • Contact Resistance:

    20 mΩ

  • Contact Style:

    BELLOWED TYPE

  • DIN Conformance:

    NO

  • Durability:

    25 Cycles

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulation Resistance:

    10000000000 Ω

  • Insulator Color:

    BLACK

  • Insulator Material:

    LIQUID CRYSTAL POLYMER

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    1A

  • Mating Contact Pitch:

    0.05 inch

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    2

  • Number of Ports:

    1

  • Number of Rows Loaded:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    STAGGERED

  • PCB Contact Row Spacing:

    0.1 mm

  • Panel Mount:

    NO

  • Plating Thickness:

    30u inch

  • Polarization Key:

    SHRD LEFT

  • Rated Current (Signal):

    1 A

  • Reference Standard:

    UL

  • Terminal Length:

    0.12 inch

  • Terminal Pitch:

    1.27 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    72

  • UL Flammability Code:

    94V-0

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

7-5382487-2 Overview

Use the download button to access the 7-5382487-2 schematic symbol, PCB footprint, and 3D model.
