The recommended torque for tightening the shaft is 10-15 in-lbs (1.1-1.7 Nm). Over-tightening can damage the switch.
Yes, the 70-OAC5 is designed to withstand vibrations up to 10 G's. However, it's recommended to consult with Grayhill's application engineers for specific vibration profiles.
The 70-OAC5 can operate in temperatures ranging from -20°C to 85°C (-4°F to 185°F). Extended operation outside this range may affect switch performance.
Yes, Grayhill offers customization options for detent torque and rotation angle. Contact their sales team to discuss specific requirements.
The 70-OAC5 has a sealed construction, but it's not designed for immersion in water or exposure to salt spray. For harsh environments, consider Grayhill's IP67-rated switches or consult with their application engineers.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
70-OAC5 Overview

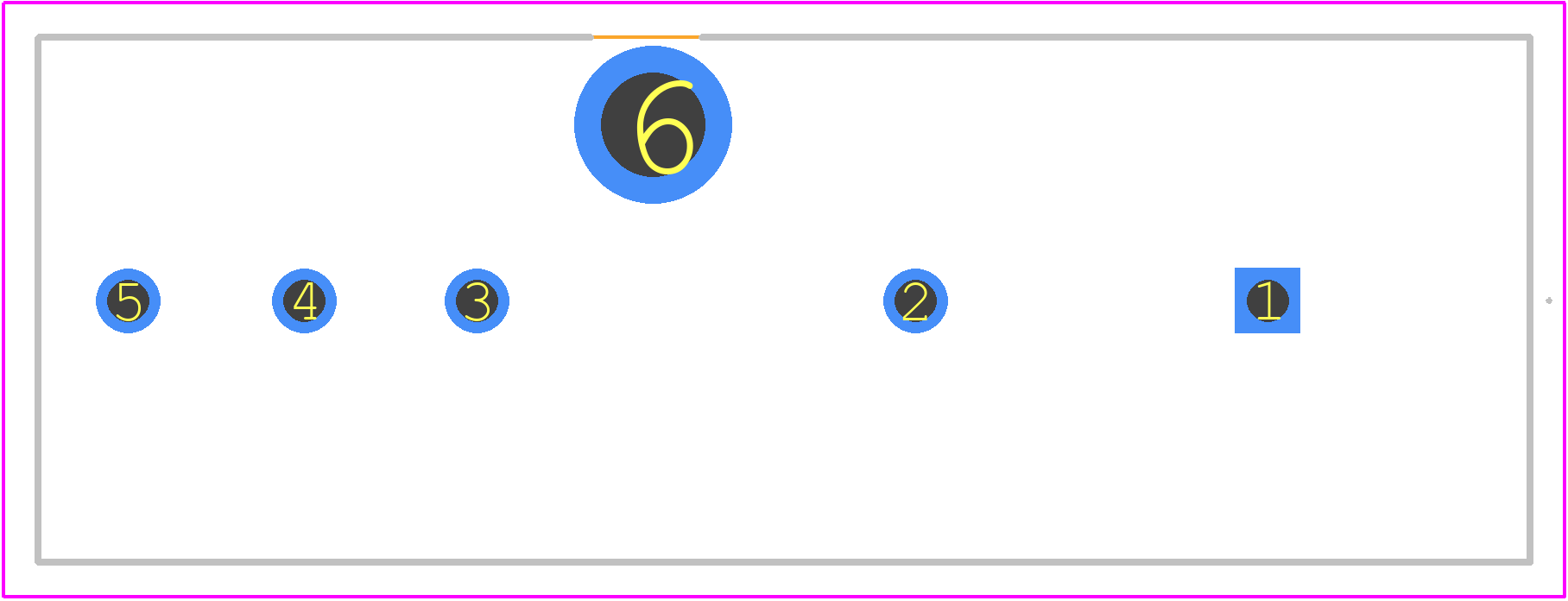

Use the download button to access the 70-OAC5 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 70-OA,
or try a keyword search, such as Other Interface ICs
