7005L35GB footprint, schematic symbol and 3D model by Renesas Electronics

Symbol

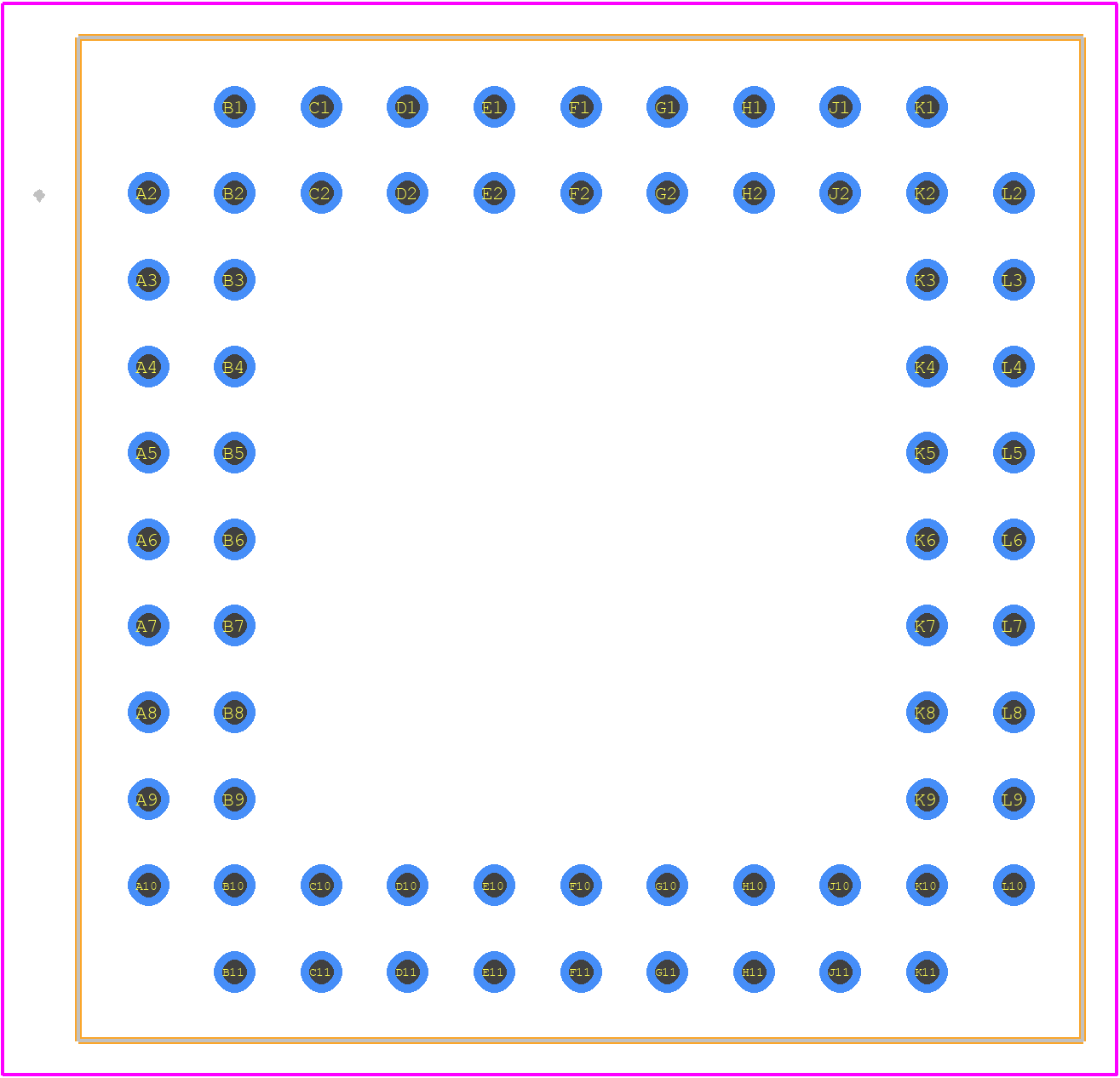

PCB Footprints

3D Models

7005L35GB Details

Manufacturer Part Number:
7005L35GB
Brand Name:
Renesas
Pbfree Code:
No
Part Life Cycle Code:
Obsolete
Part Package Code:
PGA
Pin Count:
68
Manufacturer Package Code:
GU68
ECCN Code:
3A001.A.2.C
HTS Code:
8542.32.00.41
Manufacturer:
Renesas Electronics Corporation
YTEOL:
0
Access Time-Max:
35 ns
Additional Feature:
INTERRUPT FLAG; AUTOMATIC POWER-DOWN; SEMAPHORE; BATTERY BACKUP
I/O Type:
COMMON
JESD-30 Code:
S-CPGA-P68
JESD-609 Code:
e0
Length:
29.464 mm
Memory Density:
65536 bit
Memory IC Type:
MULTI-PORT SRAM
Memory Width:
8
Moisture Sensitivity Level:
1
Number of Functions:
1
Number of Ports:
2
Number of Terminals:
68
Number of Words:
8192 words
Number of Words Code:
8000
Operating Mode:
ASYNCHRONOUS
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-55 °C
Organization:
8KX8
Output Characteristics:
3-STATE
Package Body Material:
CERAMIC, METAL-SEALED COFIRED
Package Code:
PGA
Package Equivalence Code:
PGA68,11X11
Package Shape:
SQUARE
Package Style:
GRID ARRAY
Parallel/Serial:
PARALLEL
Peak Reflow Temperature (Cel):
240
Qualification Status:
Not Qualified
Screening Level:
MIL-PRF-38535
Seated Height-Max:
5.27 mm
Standby Current-Max:
0.004 A
Standby Voltage-Min:
2 V
Supply Current-Max:
0.25 mA
Supply Voltage-Max (Vsup):
5.5 V
Supply Voltage-Min (Vsup):
4.5 V
Supply Voltage-Nom (Vsup):
5 V
Surface Mount:
NO
Technology:
CMOS
Temperature Grade:
MILITARY
Terminal Finish:
TIN LEAD
Terminal Form:
PIN/PEG
Terminal Pitch:
2.54 mm
Terminal Position:
PERPENDICULAR
Width:
29.464 mm

The recommended operating temperature range for the 7005L35GB is -40°C to +85°C, but it can tolerate storage temperatures from -55°C to +125°C.
The 7005L35GB has an internal POR and BOR circuit. To handle these, ensure a stable power supply, use a capacitor to filter the power supply voltage, and implement a reset circuit with a resistor and capacitor to ensure a clean reset signal.
The maximum clock frequency for the 7005L35GB is 24 MHz, but it can be operated at lower frequencies to reduce power consumption.
The 7005L35GB can use an external clock source or its internal oscillator. To configure the clock source, use the Clock Control Register (CCR) to select the clock source, and set the clock frequency using the Clock Frequency Control Register (CFCR).
The WDT is used to detect and recover from system failures or hangs. It can be enabled or disabled, and its timeout period can be set using the Watchdog Timer Control Register (WDTCR).

Manufacturer Collaborated

System Verified

Community Approved

Use the download button to access the 7005L35GB schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like 7005L, or try a keyword search, such as SRAMs

Showing 0 results

Image	Part Number	Model
	IDT7005S35G Integrated Device Technology Inc Multi-Port SRAM, 8KX8, 35ns, CMOS, CPGA68
	7005L35GGB8 Integrated Device Technology Inc Multi-Port SRAM, 8KX8, 35ns, CMOS, CPGA68
	IDT70V05S35GG Integrated Device Technology Inc Multi-Port SRAM, 8KX8, 35ns, CMOS, CPGA68
	70V05S35GG Integrated Device Technology Inc Multi-Port SRAM, 8KX8, 35ns, CMOS, CPGA68
	IDT70V05S35GI Integrated Device Technology Inc Multi-Port SRAM, 8KX8, 35ns, CMOS, CPGA68
For a full list of alternate parts for 7005L35GB, check out Findchips.com
