700DP7B10M6QEH - E-Switch

Description: PUSHBUTTON, 3A, 120VAC/28VDC DPDT, On-(On) Panel Mount, Through Hole, Right Angle, Rear

Download 700DP7B10M6QEH Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

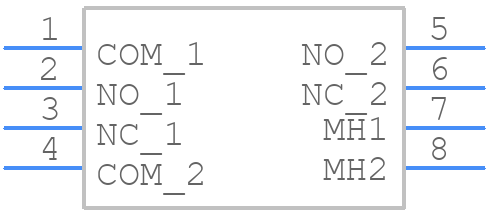

700DP7B10M6QEH - E-Switch - PCB symbol
click to zoom
PCB Footprints

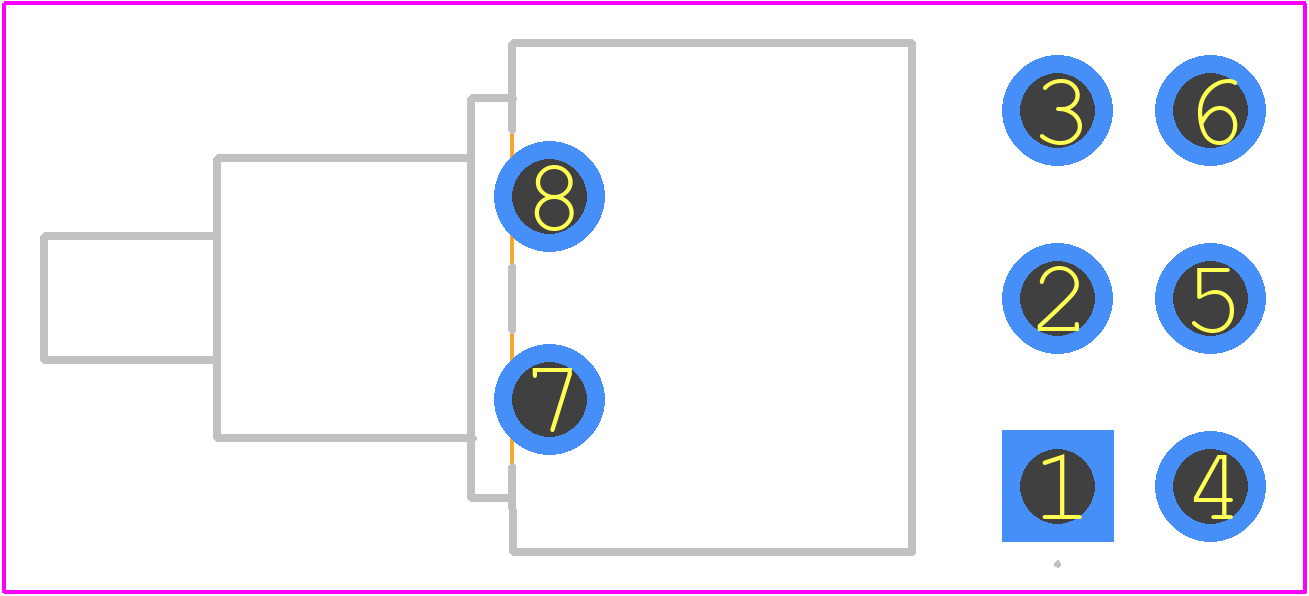

700DP7B10M6QEH - E-Switch PCB footprint - Other - Other - 700DP7B10M6QEH-4
click to zoom
3D Models
700DP7B10M6QEH - E-Switch - 3D model - Other - 700DP7B10M6QEH-4
click to zoom

700DP7B10M6QEH Details

  • Manufacturer Part Number:

    700DP7B10M6QEH

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.50.70.00

  • Manufacturer:

    E-Switch Inc

  • Switch Type:

    PUSHBUTTON SWITCH

700DP7B10M6QEH Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the 700DP7B10M6QEH switch is -20°C to 85°C.
  • Yes, the 700DP7B10M6QEH switch is designed for high-reliability applications and meets the requirements of various industry standards, including MIL-STD-202 and IEC 61076-2-1.
  • The typical actuation force required to operate the 700DP7B10M6QEH switch is around 1.5 N to 2.5 N, depending on the specific configuration and application.
  • Yes, the 700DP7B10M6QEH switch is designed to operate in harsh environments and meets the requirements of various industry standards for environmental testing, including IEC 60068-2-1 and IEC 60068-2-2.
  • The typical lifespan of the 700DP7B10M6QEH switch is around 1 million to 5 million cycles, depending on the specific application and operating conditions.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

700DP7B10M6QEH Overview

Use the download button to access the 700DP7B10M6QEH schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 700DP, or try a keyword search, such as Pushbutton Switches
