700SP7B10M7QEH footprint, schematic symbol and 3D model by E-Switch

Symbol

click to zoom

PCB Footprints

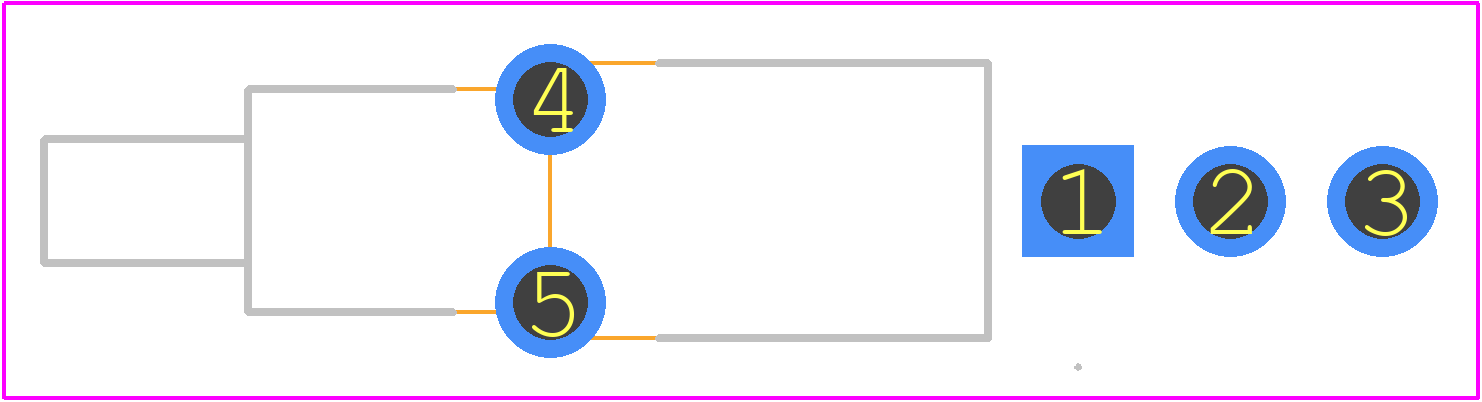

700SP7B10M7QEH - E-Switch PCB footprint - Other - Other - 700SP7B10M7QEH-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for 700SP7B10M7QEH
Part Number 700SP7B10M7QEH
Manufacturer E-Switch
Pin Count 5
Part Category Switch
Package Category Other
Footprint Name Other - 700SP7B10M7QEH-1
Released Date Oct 23, 2024
Last Modified Date Dec 31, 2024 12:57 PM UTC
Pinout / Pin List Click Here (Member Only)

700SP7B10M7QEH Details

Manufacturer Part Number:
700SP7B10M7QEH
Rohs Code:
Yes
Part Life Cycle Code:
Active
ECCN Code:
EAR99
HTS Code:
8536.50.90.31
Manufacturer:
E-Switch Inc
YTEOL:
8.4
Switch Type:
PUSHBUTTON SWITCH

700SP7B10M7QEH Frequently Asked Questions (FAQs)

The recommended torque for the screw terminals is 0.5-0.8 Nm (5-8 in-lbs).
Yes, the switch is designed to withstand vibrations up to 10G (10-2000 Hz) and can be used in high-vibration applications.
The operating temperature range for the 700SP7B10M7QEH is -20°C to 85°C (-4°F to 185°F).
Yes, the 700SP7B10M7QEH is compatible with lead-free soldering processes and meets the requirements of the RoHS directive.
The recommended cleaning process for the switch involves using a soft brush and a mild detergent solution. Avoid using harsh chemicals or abrasive materials that may damage the switch.

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

700SP7B10M7QEH Overview

Use the download button to access the 700SP7B10M7QEH schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like 700SP, or try a keyword search, such as Pushbutton Switches
