700SP7B20M6REC1BLK - E-Switch

Description: PUSHBUTTON, 0.4VA, 20VAC/VDC SPDT, On-(On) Through Hole, Right Angle

Download 700SP7B20M6REC1BLK Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this 700SP7B20M6REC1BLK model

Email notifications will be applied after download.

Send part feedback

Symbol

700SP7B20M6REC1BLK - E-Switch - PCB symbol

PCB Footprints

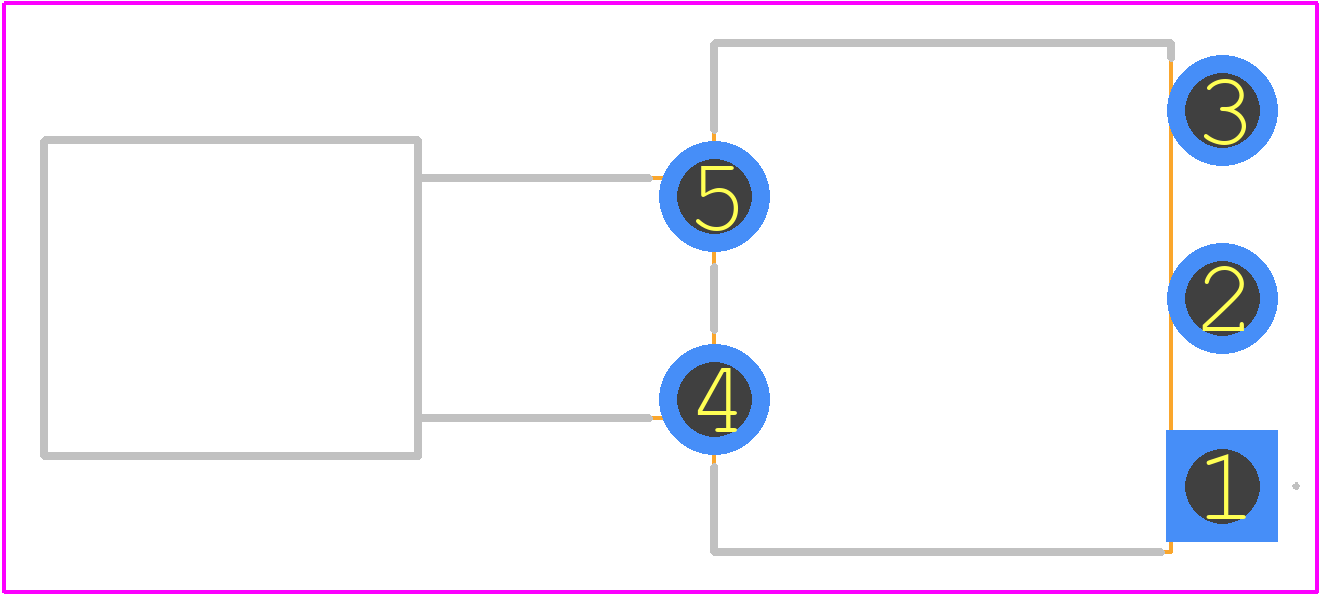

700SP7B20M6REC1BLK - E-Switch PCB footprint - Other - Other - 700SP7B20M6REC1BLK-1

3D Models

700SP7B20M6REC1BLK - E-Switch - 3D model - Other - 700SP7B20M6REC1BLK-1

Datasheet Download Datasheet
Stock & Prices Price & Stock for 700SP7B20M6REC1BLK
Part Number 700SP7B20M6REC1BLK
Manufacturer E-Switch
Pin Count 5
Part Category Switch
Package Category Other
Footprint Name Other - 700SP7B20M6REC1BLK-1
Released Date Aug 29, 2025
Last Modified Date Aug 29, 2025 10:11 AM UTC
Pinout / Pin List Click Here (Member Only)

700SP7B20M6REC1BLK Details

Manufacturer Part Number:
700SP7B20M6REC1BLK
Part Life Cycle Code:
Active
Reach Compliance Code:
Compliant
Manufacturer:
E-Switch Inc

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

700SP7B20M6REC1BLK Overview

Use the download button to access the 700SP7B20M6REC1BLK schematic symbol, PCB footprint, and 3D model.
