700SP7B21VS2REC1BLK - E-Switch

700SP7B21VS2REC1BLK Details

• Manufacturer Part Number:

  700SP7B21VS2REC1BLK

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• ECCN Code:

  EAR99

• HTS Code:

  8536.50.70.00

• Manufacturer:

  E-Switch Inc

• YTEOL:

  8.9

• Actuator Length:

  0.224 inch

• Actuator Material:

  GLASS FILLED NYLON

• Actuator Type:

  PUSHBUTTON

• Body Breadth:

  8.128 mm

• Body Height:

  11.684 mm

• Body Length or Diameter:

  15.748 mm

• Bushing Length:

  0.28 inch

• Bushing Type:

  1/4-40

• Center Contact Material:

  COPPER ALLOY

• Center Contact Plating:

  GOLD OVER NICKEL

• Contact (AC) Max Rating R Load:

  1A@250VAC

• Contact Current(AC)-Max:

  1 A

• Contact Function:

  ON-(ON)

• Contact Resistance:

  0.01 mΩ

• Contact Timing:

  SNAP ACTION

• Contact Voltage(AC)-Max:

  250 V

• Dielectric Withstand Volts:

  1000VAC V

• Electrical Life:

  50000 Cycle(s)

• End Contact Material:

  COPPER ALLOY

• End Contact Plating:

  GOLD OVER NICKEL

• Housing Material:

  STAINLESS STEEL

• Illumination:

  NON-ILLUMINATED

• Insulation Resistance:

  1000000000 Ω

• Insulator Material:

  DIALLYL PHTHALATE

• JESD-609 Code:

  e4

• Mounting Feature:

  THROUGH HOLE-STRAIGHT

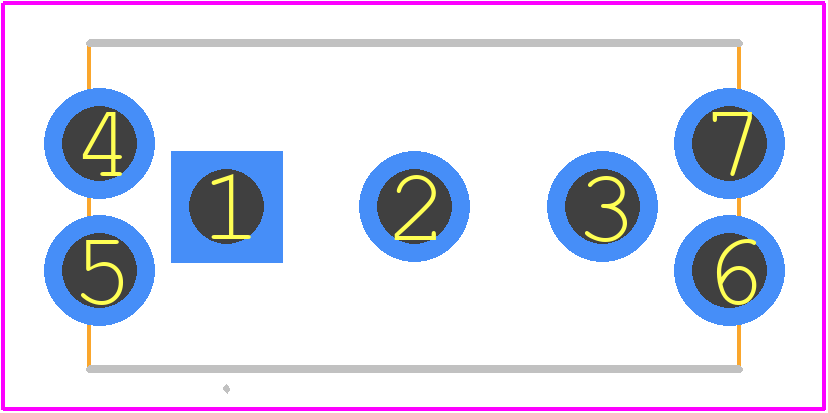

• PCB Hole Count:

  7

• Sealing:

  EPOXY

• Surface Mount:

  NO

• Switch Action:

  MOMENTARY

• Switch Function:

  SPDT

• Switch Type:

  PUSHBUTTON SWITCH

• Terminal Finish:

  Gold (Au) - with Nickel (Ni) barrier

• Terminal Length:

  0.185 inch

• Termination Type:

  SOLDER
