70247-1651 - Molex

Description: 2.54mm Pitch C-Grid Header, Dual Row, Low Profile, Right Angle, Shrouded, Circuits, 0.76µm Gold (Au) Selective Plating, Tin (Sn) PC Tail Plating

Download 70247-1651 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
70247-1651 - Molex - PCB symbol
click to zoom
PCB Footprints

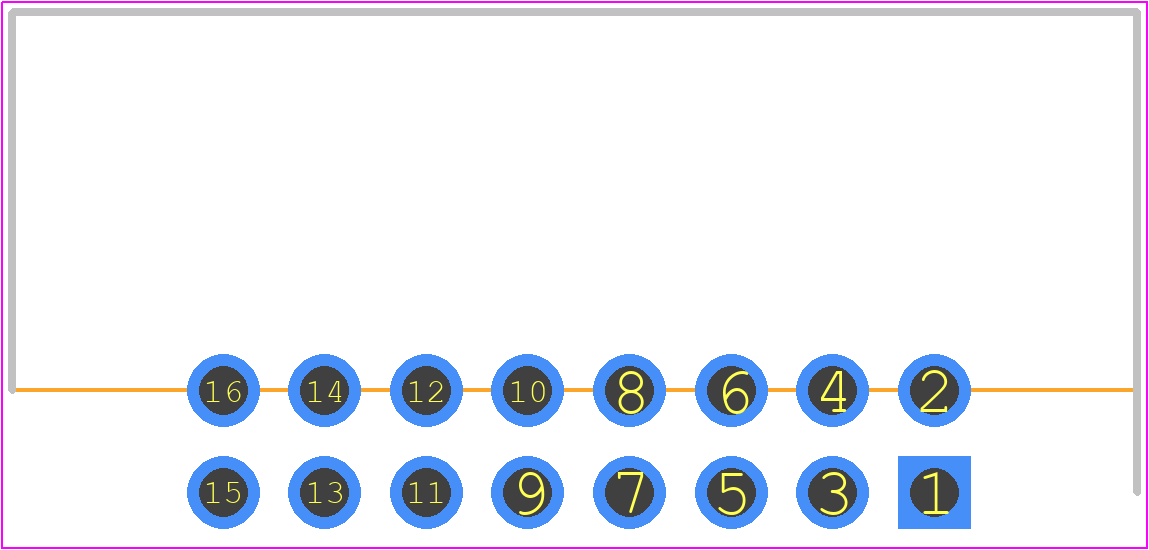

70247-1651 - Molex PCB footprint - Header, Shrouded - Right Angle PTH Box - Header, Shrouded - Right Angle PTH Box - 70247-1651
click to zoom
3D Models
70247-1651 - Molex - 3D model - Header, Shrouded - Right Angle PTH Box - 70247-1651
click to zoom

70247-1651 Details

  • Manufacturer Part Number:

    70247-1651

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Ireland, Malaysia, Singapore, Slovakia

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    19 Weeks

  • Manufacturer:

    Molex

  • YTEOL:

    9.1

  • Additional Feature:

    SHROUDED

  • Body Breadth:

    0.35 inch

  • Body Depth:

    0.473 inch

  • Body Length:

    1.1 inch

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Tin (Sn)

  • Contact Gender:

    MALE

  • Contact Material:

    PHOSPHOR BRONZE

  • Contact Pattern:

    RECTANGULAR

  • Contact Style:

    SQ PIN-SKT

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Material:

    GLASS FILLED POLYBUTYLENE TEREPHTHALATE

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mating Contact Pitch:

    0.1 inch

  • Mating Contact Row Spacing:

    0.1 inch

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    2

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    RECTANGULAR

  • PCB Contact Row Spacing:

    2.54 mm

  • Polarization Key:

    POLARIZED HOUSING

  • Rated Current (Signal):

    2.5 A

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    16

  • UL Flammability Code:

    94V-0

70247-1651 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
  • Yes, the 70247-1651 connector is designed to withstand vibrations and can be used in high-vibration applications. However, it's crucial to ensure proper mounting and secure the connector to prevent damage or disconnection.
  • The operating temperature range for the 70247-1651 connector is -40°C to 105°C (-40°F to 221°F). It's essential to ensure the connector is used within this temperature range to maintain its performance and reliability.
  • The 70247-1651 connector is designed for indoor use, but it can be used in outdoor or harsh environmental applications with proper sealing and protection. It's recommended to use additional sealing or coating to protect the connector from moisture, dust, and other environmental factors.
  • While the 70247-1651 connector is designed for AWG 20-24 wire sizes, it's possible to use it with other wire sizes. However, it's essential to ensure the wire size is compatible with the connector's terminal design and to follow the manufacturer's guidelines for wire stripping and termination.
