7024L20GB - Renesas Electronics

Description: The 7024 is a high-speed 4Kx 16 Dual-Port Static RAM designed to be used as a stand-alone 64K-bit Dual-Port RAM or as a combination MASTER/SLAVE Dual-Port RAM for 32-bit or more word systems. An automatic power down feature controlled by Chip Enable (CE) permits the on-chip circuitry of each port to enter a very low standby power mode. Military grade product in compliance with MIL-PRF-38535 QML is available.

Download 7024L20GB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
7024L20GB - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints

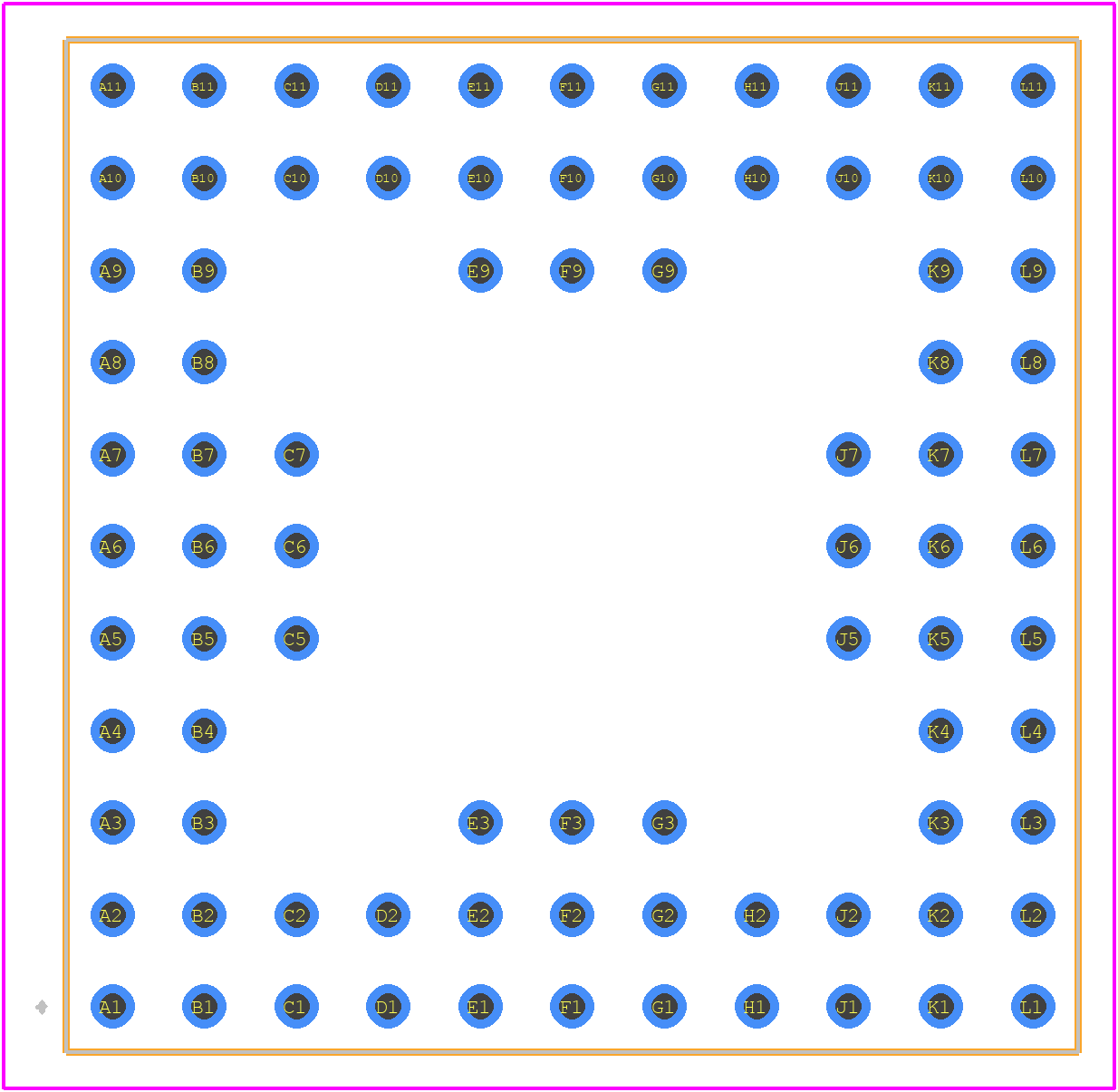

7024L20GB - Renesas Electronics PCB footprint - Other - Other - GU84_REV02
click to zoom
3D Models
7024L20GB - Renesas Electronics - 3D model - Other - GU84_REV02
click to zoom

7024L20GB Details

  • Manufacturer Part Number:

    7024L20GB

  • Brand Name:

    Renesas

  • Pbfree Code:

    No

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    PGA

  • Pin Count:

    84

  • Manufacturer Package Code:

    GU84

  • ECCN Code:

    3A001.A.2.C

  • HTS Code:

    8542.32.00.41

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Access Time-Max:

    20 ns

  • Additional Feature:

    INTERRUPT FLAG; SEMAPHORE; AUTOMATIC POWER-DOWN

  • I/O Type:

    COMMON

  • JESD-30 Code:

    S-CPGA-P84

  • JESD-609 Code:

    e0

  • Length:

    27.94 mm

  • Memory Density:

    65536 bit

  • Memory IC Type:

    MULTI-PORT SRAM

  • Memory Width:

    16

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Ports:

    2

  • Number of Terminals:

    84

  • Number of Words:

    4096 words

  • Number of Words Code:

    4000

  • Operating Mode:

    ASYNCHRONOUS

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Organization:

    4KX16

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    CERAMIC, METAL-SEALED COFIRED

  • Package Code:

    PGA

  • Package Equivalence Code:

    PGA84M,11X11

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY

  • Parallel/Serial:

    PARALLEL

  • Peak Reflow Temperature (Cel):

    240

  • Qualification Status:

    Not Qualified

  • Screening Level:

    38535Q/M;38534H;883B

  • Seated Height-Max:

    5.207 mm

  • Standby Current-Max:

    0.004 A

  • Standby Voltage-Min:

    2 V

  • Supply Current-Max:

    0.32 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Temperature Grade:

    MILITARY

  • Terminal Finish:

    TIN LEAD

  • Terminal Form:

    PIN/PEG

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    PERPENDICULAR

  • Width:

    27.94 mm

7024L20GB Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the 7024L20GB is -40°C to +85°C, but it can operate up to +105°C with reduced performance and reliability.
  • The clock source for the 7024L20GB can be configured using the Clock Control Register (CKR). You can select between the internal oscillator, external clock, or PLL clock sources. Refer to the datasheet for specific register settings and configuration options.
  • The maximum current consumption of the 7024L20GB depends on the operating frequency, voltage, and peripheral usage. According to the datasheet, the maximum current consumption is approximately 350 mA at 5V and 20 MHz, but this can vary depending on the specific application and usage.
  • The 7024L20GB has several low-power modes, including Sleep, Stop, and Hibernate modes. These modes can be enabled by setting specific bits in the Power Control Register (PCR) and configuring the clock control registers. Refer to the datasheet for detailed instructions and power consumption estimates for each mode.
  • Yes, the 7024L20GB can be used with an external crystal oscillator. You'll need to connect the crystal oscillator to the XIN and XOUT pins, and configure the clock control registers to select the external clock source. Refer to the datasheet for specific pin connections and register settings.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

7024L20GB Overview

Use the download button to access the 7024L20GB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 7024L, or try a keyword search, such as SRAMs
