7024L35GB - Renesas Electronics

Description: The 7024 is a high-speed 4Kx 16 Dual-Port Static RAM designed to be used as a stand-alone 64K-bit Dual-Port RAM or as a combination MASTER/SLAVE Dual-Port RAM for 32-bit or more word systems. An automatic power down feature controlled by Chip Enable (CE) permits the on-chip circuitry of each port to enter a very low standby power mode. Military grade product in compliance with MIL-PRF-38535 QML is available.

Download 7024L35GB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
7024L35GB - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints

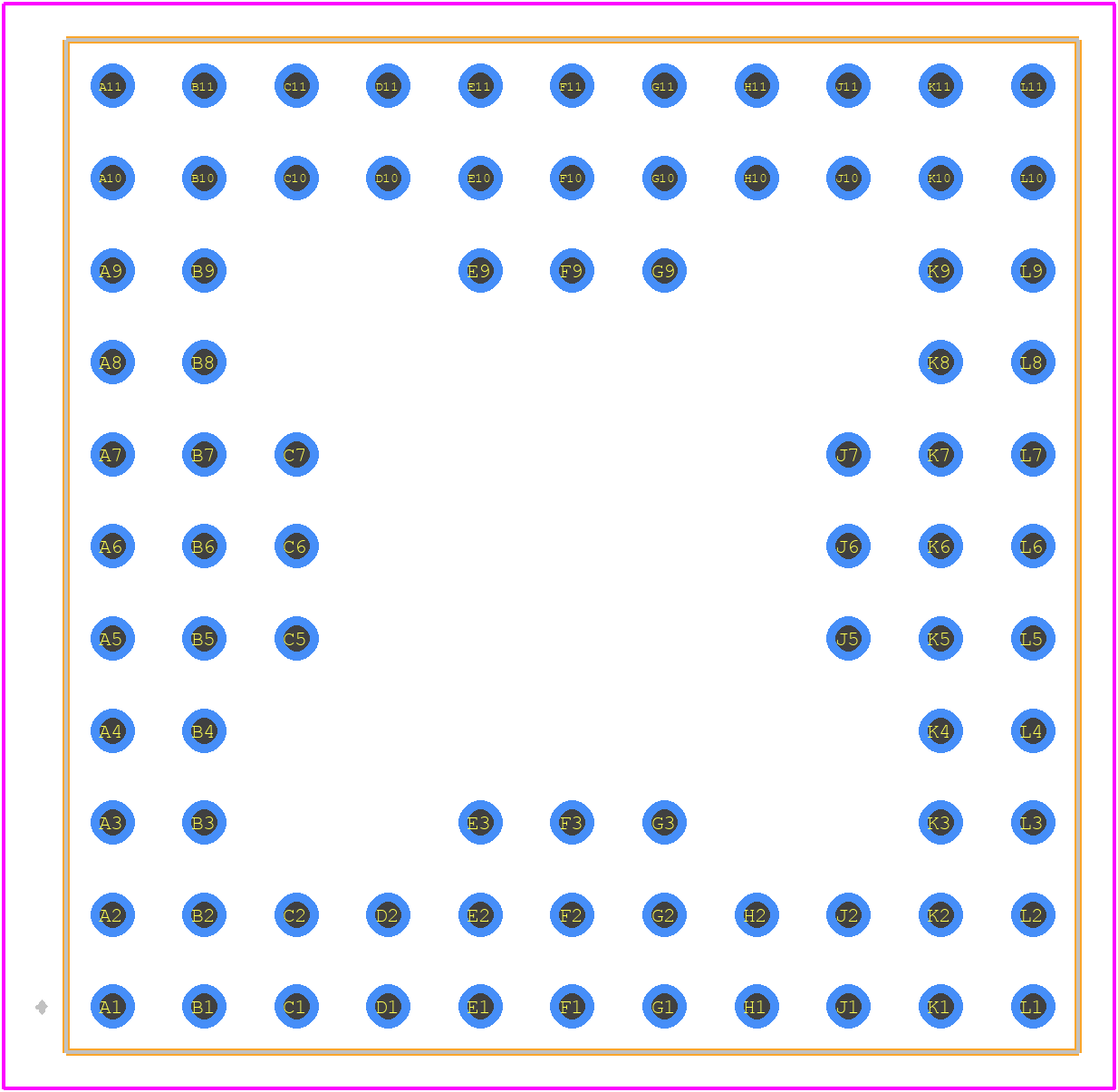

7024L35GB - Renesas Electronics PCB footprint - Other - Other - GU84_REV02
click to zoom
3D Models
7024L35GB - Renesas Electronics - 3D model - Other - GU84_REV02
click to zoom

7024L35GB Details

  • Manufacturer Part Number:

    7024L35GB

  • Brand Name:

    Renesas

  • Pbfree Code:

    No

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    PGA

  • Pin Count:

    84

  • Manufacturer Package Code:

    GU84

  • Country Of Origin:

    Thailand

  • ECCN Code:

    3A001.A.2.C

  • HTS Code:

    8542.32.00.41

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Access Time-Max:

    35 ns

  • Additional Feature:

    INTERRUPT FLAG; SEMAPHORE; AUTOMATIC POWER-DOWN

  • I/O Type:

    COMMON

  • JESD-30 Code:

    S-CPGA-P84

  • JESD-609 Code:

    e0

  • Length:

    27.94 mm

  • Memory Density:

    65536 bit

  • Memory IC Type:

    MULTI-PORT SRAM

  • Memory Width:

    16

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Ports:

    2

  • Number of Terminals:

    84

  • Number of Words:

    4096 words

  • Number of Words Code:

    4000

  • Operating Mode:

    ASYNCHRONOUS

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Organization:

    4KX16

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    CERAMIC, METAL-SEALED COFIRED

  • Package Code:

    PGA

  • Package Equivalence Code:

    PGA84M,11X11

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY

  • Parallel/Serial:

    PARALLEL

  • Peak Reflow Temperature (Cel):

    240

  • Qualification Status:

    Not Qualified

  • Screening Level:

    38535Q/M;38534H;883B

  • Seated Height-Max:

    5.207 mm

  • Standby Current-Max:

    0.004 A

  • Standby Voltage-Min:

    2 V

  • Supply Current-Max:

    0.25 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Temperature Grade:

    MILITARY

  • Terminal Finish:

    TIN LEAD

  • Terminal Form:

    PIN/PEG

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    PERPENDICULAR

  • Width:

    27.94 mm

7024L35GB Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout guide for the 7024L35GB, which includes thermal vias, thermal pads, and heat sink recommendations to ensure optimal thermal performance. It's available on the Renesas website or through their support channels.
  • Renesas provides a Secure Boot and Firmware Encryption Guide for the 7024L35GB, which outlines the steps to implement secure boot and firmware encryption using the MCU's built-in security features, such as the Trusted Execution Environment (TEE) and the Advanced Encryption Standard (AES).
  • The internal oscillator of the 7024L35GB has a typical accuracy of ±1.5% at room temperature. To improve its accuracy, you can use an external crystal oscillator or a high-precision clock source. Additionally, Renesas provides calibration procedures and trimming options to adjust the internal oscillator's frequency.
  • To optimize power consumption and reduce standby current, you can use the 7024L35GB's power-saving modes, such as the Low Power Mode (LPM) and the Deep Standby Mode (DSM). Additionally, you can optimize your firmware to minimize power consumption, use clock gating, and reduce peripheral usage.
  • Renesas provides a range of debugging tools, including the E2 Emulator and the CS+ Integrated Development Environment (IDE). Best practices for debugging and troubleshooting include using these tools, enabling debug logging, and implementing error handling and fault detection mechanisms in your firmware.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

7024L35GB Overview

Use the download button to access the 7024L35GB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 7024L, or try a keyword search, such as SRAMs
