7025L15JG footprint, schematic symbol and 3D model by Renesas Electronics

Symbol

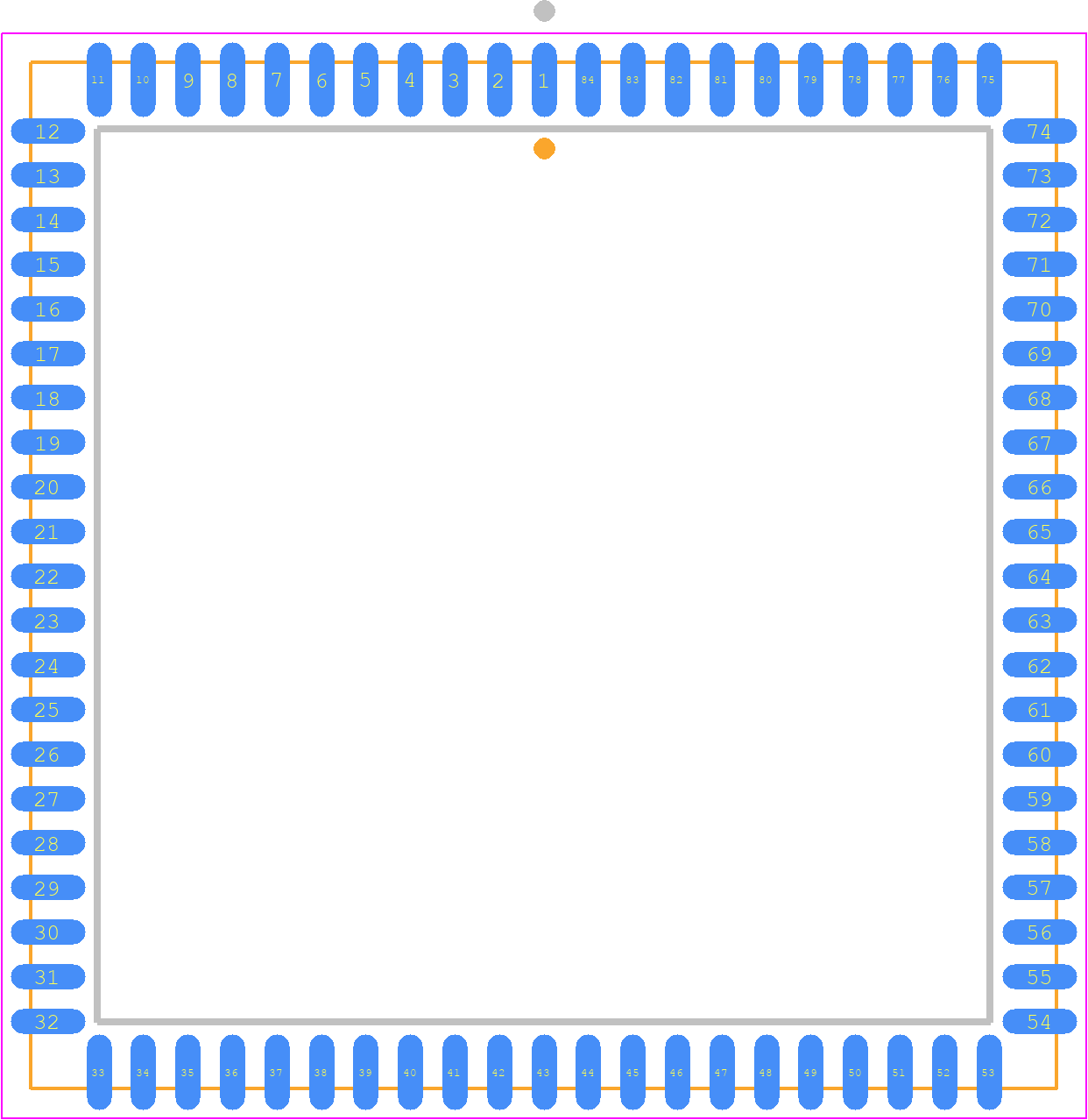

PCB Footprints

7025L15JG Details

Manufacturer Part Number:
7025L15JG
Brand Name:
Renesas
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Obsolete
Part Package Code:
PLCC
Pin Count:
84
Manufacturer Package Code:
PLG84
ECCN Code:
EAR99
HTS Code:
8542.32.00.41
Manufacturer:
Renesas Electronics Corporation
YTEOL:
0
Access Time-Max:
15 ns
Additional Feature:
INTERRUPT FLAG; AUTOMATIC POWER-DOWN; SEMAPHORE; BATTERY BACKUP
I/O Type:
COMMON
JESD-30 Code:
S-PQCC-J84
JESD-609 Code:
e3
Length:
29.21 mm
Memory Density:
131072 bit
Memory IC Type:
MULTI-PORT SRAM
Memory Width:
16
Moisture Sensitivity Level:
3
Number of Functions:
1
Number of Ports:
2
Number of Terminals:
84
Number of Words:
8192 words
Number of Words Code:
8000
Operating Mode:
ASYNCHRONOUS
Operating Temperature-Max:
70 °C
Organization:
8KX16
Output Characteristics:
3-STATE
Output Enable:
YES
Package Body Material:
PLASTIC/EPOXY
Package Code:
QCCJ
Package Equivalence Code:
LDCC84,1.2SQ
Package Shape:
SQUARE
Package Style:
CHIP CARRIER
Parallel/Serial:
PARALLEL
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
4.63 mm
Standby Current-Max:
0.0015 A
Supply Current-Max:
0.26 mA
Supply Voltage-Max (Vsup):
5.5 V
Supply Voltage-Min (Vsup):
4.5 V
Supply Voltage-Nom (Vsup):
5 V
Surface Mount:
YES
Technology:
CMOS
Temperature Grade:
COMMERCIAL
Terminal Finish:
MATTE TIN
Terminal Form:
J BEND
Terminal Pitch:
1.27 mm
Terminal Position:
QUAD
Width:
29.21 mm

The recommended operating voltage range for the 7025L15JG is 4.5V to 5.5V, with a typical voltage of 5V.
The 7025L15JG has an internal clock source, but you can also use an external clock source. To configure the clock source, you need to set the CKS bits in the System Clock Control Register (SYCC). Refer to the datasheet for specific register settings.
The maximum frequency of the 7025L15JG is 15 MHz, but it can be operated at lower frequencies depending on the application requirements.
The WDT is used to reset the microcontroller in case of a software fault. To use the WDT, you need to set the WDT enable bit in the Watchdog Timer Control Register (WDTC) and configure the WDT timeout period using the WDT Timer Register (WDTR).
Yes, the 7025L15JG has a low-power mode called 'Stop Mode' that reduces power consumption. To enter Stop Mode, you need to set the Stop Mode enable bit in the Power Management Control Register (PMC).
