7025L25G footprint, schematic symbol and 3D model by Renesas Electronics

Symbol

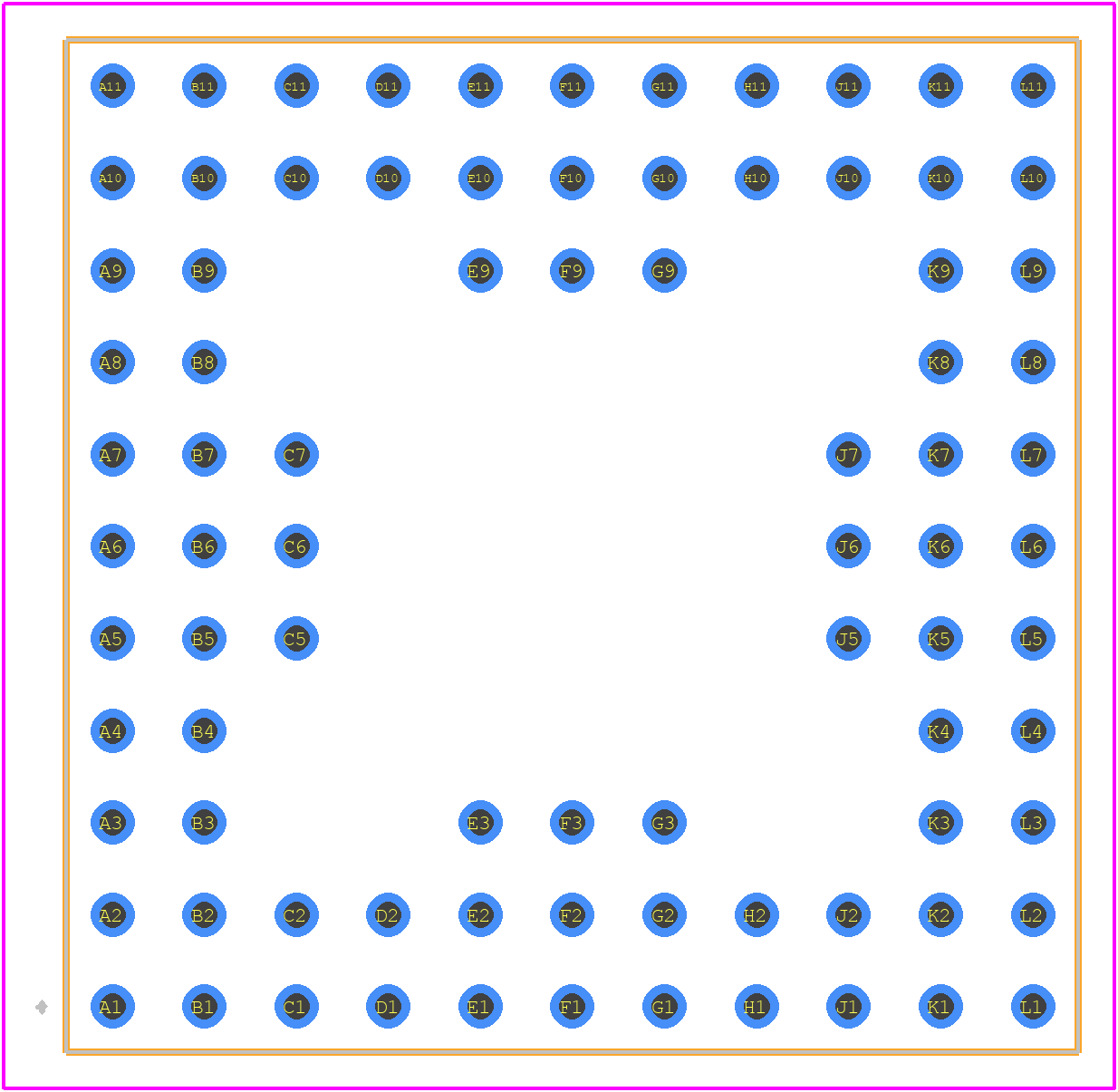

PCB Footprints

3D Models

7025L25G Details

Manufacturer Part Number:
7025L25G
Brand Name:
Renesas
Pbfree Code:
No
Part Life Cycle Code:
Active
Part Package Code:
PGA
Pin Count:
84
Manufacturer Package Code:
GU84
Country Of Origin:
Thailand
ECCN Code:
EAR99
HTS Code:
8542.32.00.41
Factory Lead Time:
18 Weeks
Manufacturer:
Renesas Electronics Corporation
YTEOL:
3
Access Time-Max:
25 ns
Additional Feature:
INTERRUPT FLAG; AUTOMATIC POWER-DOWN; SEMAPHORE; BATTERY BACKUP
I/O Type:
COMMON
JESD-30 Code:
S-CPGA-P84
JESD-609 Code:
e0
Length:
27.94 mm
Memory Density:
131072 bit
Memory IC Type:
MULTI-PORT SRAM
Memory Width:
16
Moisture Sensitivity Level:
1
Number of Functions:
1
Number of Ports:
2
Number of Terminals:
84
Number of Words:
8192 words
Number of Words Code:
8000
Operating Mode:
ASYNCHRONOUS
Operating Temperature-Max:
70 °C
Organization:
8KX16
Output Characteristics:
3-STATE
Output Enable:
YES
Package Body Material:
CERAMIC, METAL-SEALED COFIRED
Package Code:
PGA
Package Equivalence Code:
PGA84M,11X11
Package Shape:
SQUARE
Package Style:
GRID ARRAY
Parallel/Serial:
PARALLEL
Peak Reflow Temperature (Cel):
240
Qualification Status:
Not Qualified
Seated Height-Max:
3.68 mm
Standby Current-Max:
0.0015 A
Supply Current-Max:
0.22 mA
Supply Voltage-Max (Vsup):
5.5 V
Supply Voltage-Min (Vsup):
4.5 V
Supply Voltage-Nom (Vsup):
5 V
Surface Mount:
NO
Technology:
CMOS
Temperature Grade:
COMMERCIAL
Terminal Finish:
Tin/Lead (Sn/Pb)
Terminal Form:
PIN/PEG
Terminal Pitch:
2.54 mm
Terminal Position:
PERPENDICULAR
Width:
27.94 mm

The recommended crystal oscillator frequency for the 7025L25G is 12 MHz or 16 MHz, depending on the specific application and clock speed requirements.
To configure the 7025L25G for low-power mode, set the Power Control Register (PCR) to enable the Low Power Mode (LPM) and adjust the clock frequency and voltage regulator settings accordingly. Refer to the datasheet and application notes for specific register settings and guidelines.
The maximum operating temperature range for the 7025L25G is -40°C to +85°C, but this may vary depending on the specific package type and application. Always check the datasheet and reliability reports for specific temperature ratings.
Yes, the 7025L25G has an external memory interface that supports up to 16 MB of address space. However, the specific memory interface configuration and timing requirements must be carefully considered to ensure compatibility and reliable operation.
The 7025L25G has a built-in watchdog timer (WDT) that can be enabled and configured using the Watchdog Timer Control Register (WTCR). Set the WTCR to enable the WDT, and adjust the timeout period and reset settings according to your application requirements.
