7025L25GB footprint, schematic symbol and 3D model by Renesas Electronics

Symbol

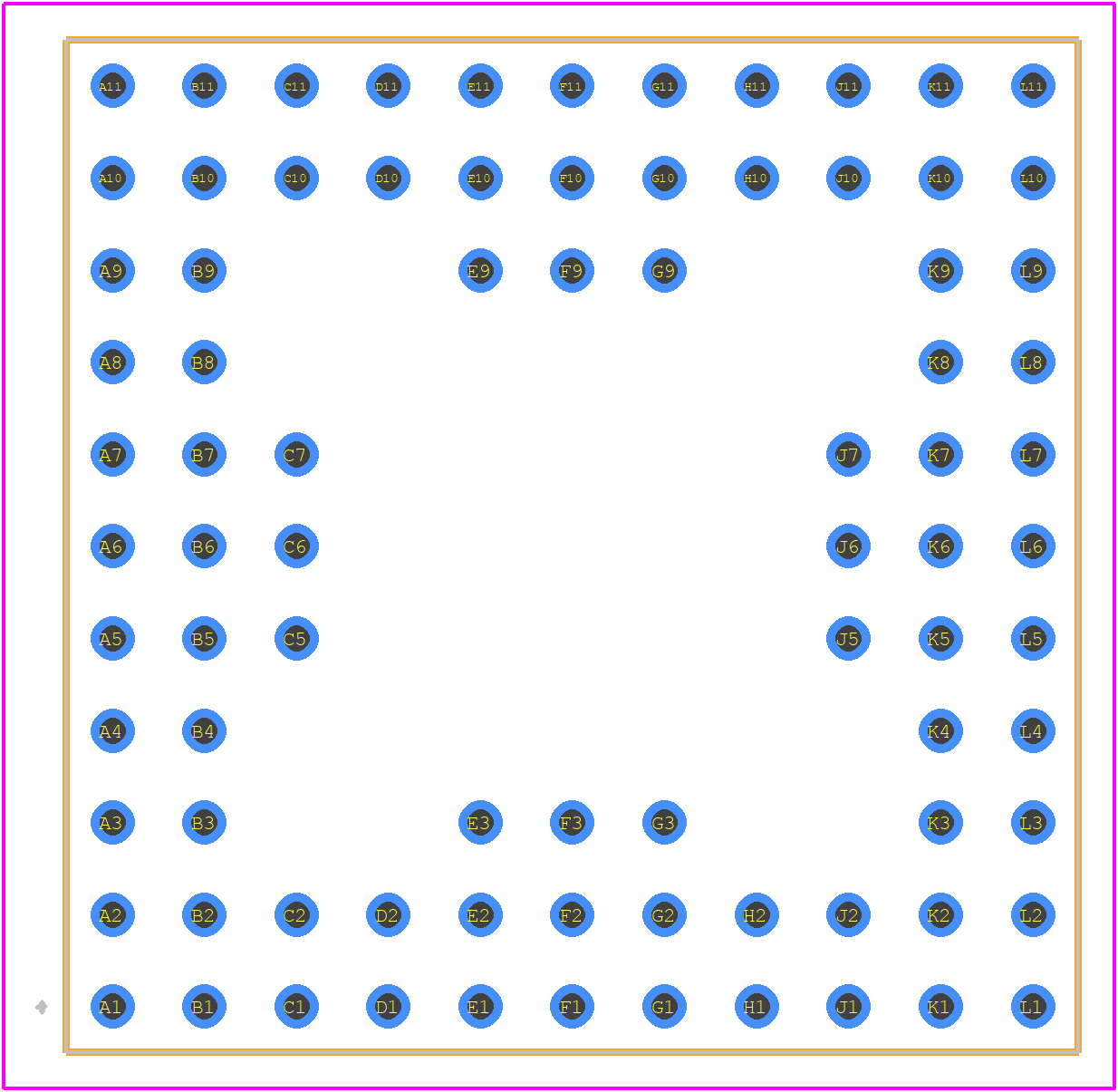

PCB Footprints

3D Models

7025L25GB Details

Manufacturer Part Number:
7025L25GB
Brand Name:
Renesas
Pbfree Code:
No
Part Life Cycle Code:
Obsolete
Part Package Code:
PGA
Pin Count:
84
Manufacturer Package Code:
GU84
ECCN Code:
3A001.A.2.C
HTS Code:
8542.32.00.41
Manufacturer:
Renesas Electronics Corporation
YTEOL:
0
Access Time-Max:
25 ns
Additional Feature:
INTERRUPT FLAG; AUTOMATIC POWER-DOWN; SEMAPHORE; BATTERY BACKUP
I/O Type:
COMMON
JESD-30 Code:
S-CPGA-P84
JESD-609 Code:
e0
Length:
27.94 mm
Memory Density:
131072 bit
Memory IC Type:
MULTI-PORT SRAM
Memory Width:
16
Moisture Sensitivity Level:
1
Number of Functions:
1
Number of Ports:
2
Number of Terminals:
84
Number of Words:
8192 words
Number of Words Code:
8000
Operating Mode:
ASYNCHRONOUS
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-55 °C
Organization:
8KX16
Output Characteristics:
3-STATE
Output Enable:
YES
Package Body Material:
CERAMIC, METAL-SEALED COFIRED
Package Code:
PGA
Package Equivalence Code:
PGA84M,11X11
Package Shape:
SQUARE
Package Style:
GRID ARRAY
Parallel/Serial:
PARALLEL
Peak Reflow Temperature (Cel):
240
Qualification Status:
Not Qualified
Screening Level:
MIL-PRF-38535
Seated Height-Max:
3.68 mm
Standby Current-Max:
0.004 A
Supply Current-Max:
0.22 mA
Supply Voltage-Max (Vsup):
5.5 V
Supply Voltage-Min (Vsup):
4.5 V
Supply Voltage-Nom (Vsup):
5 V
Surface Mount:
NO
Technology:
CMOS
Temperature Grade:
MILITARY
Terminal Finish:
Tin/Lead (Sn/Pb)
Terminal Form:
PIN/PEG
Terminal Pitch:
2.54 mm
Terminal Position:
PERPENDICULAR
Width:
27.94 mm

The recommended crystal oscillator frequency for the 7025L25GB is 12 MHz or 16 MHz, depending on the specific application and clock speed requirements.
To configure the 7025L25GB for low-power mode, set the clock control register (CKCR) to select the desired clock source, and then set the power control register (PCR) to enable the low-power mode. Additionally, disable any unnecessary peripherals and adjust the clock frequency to minimize power consumption.
The maximum operating temperature range for the 7025L25GB is -40°C to +85°C, but this may vary depending on the specific package and application. Always check the datasheet and consult with Renesas support for specific temperature range requirements.
To implement a watchdog timer on the 7025L25GB, configure the watchdog timer control register (WTCR) to enable the watchdog timer, set the watchdog timer period, and enable the watchdog timer interrupt. The watchdog timer will reset the microcontroller if it does not receive a refresh signal within the set period.
The maximum current consumption of the 7025L25GB varies depending on the operating frequency, voltage, and peripherals used. According to the datasheet, the typical current consumption is around 10 mA at 5 V and 12 MHz, but this can increase to around 30 mA or more in certain configurations. Always check the datasheet and consult with Renesas support for specific current consumption requirements.

Manufacturer Collaborated

System Verified

Community Approved

Use the download button to access the 7025L25GB schematic symbol, PCB footprint, and 3D model.
